Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover.

    (Refer to body - "FLOOR CONSOLE ASSEMBLY ")

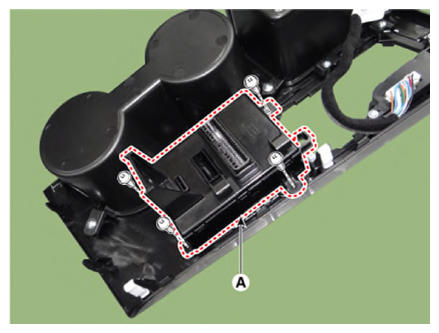

  3. Remove the SVM switch (A) after loosening the screws.
    G13158580Courtesy of KIA MOTORS AMERICA, INC.
