Cluster Module Variant Coding

WARNING: This page is about a different variant/trim than selected.
  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU Variant Coding" in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.
    G13162303Courtesy of KIA MOTORS AMERICA, INC.

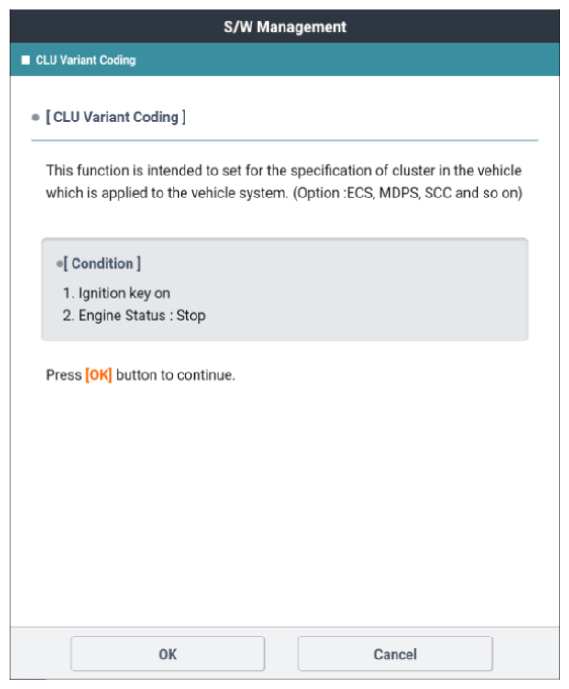

    G13162304Courtesy of KIA MOTORS AMERICA, INC.

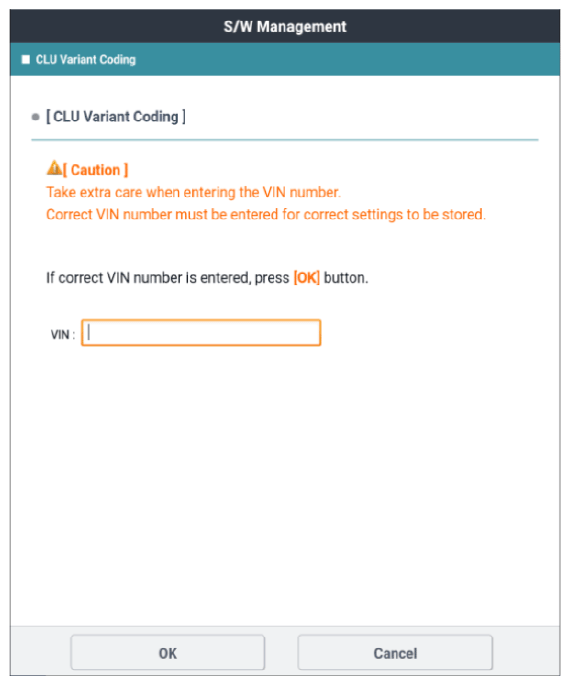

    G13162305Courtesy of KIA MOTORS AMERICA, INC.

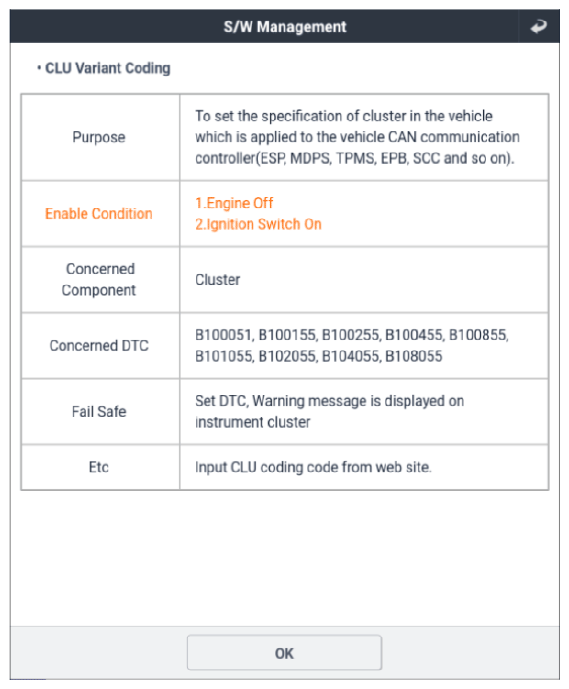

    G13162306Courtesy of KIA MOTORS AMERICA, INC.

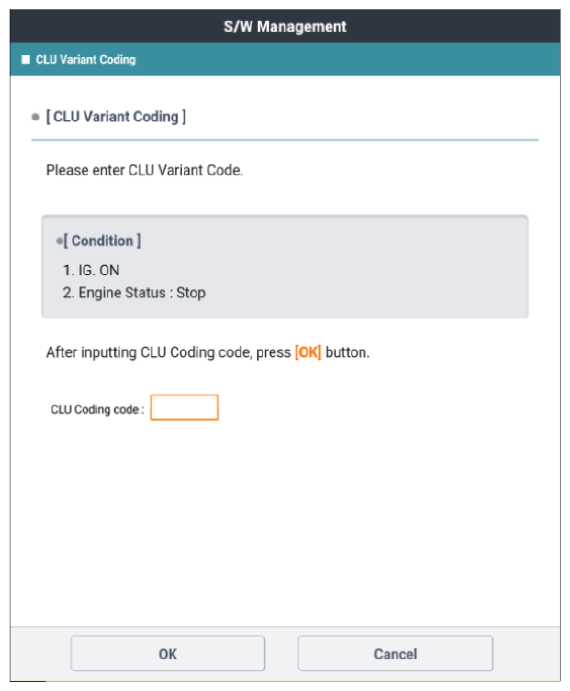

    G13162307Courtesy of KIA MOTORS AMERICA, INC.

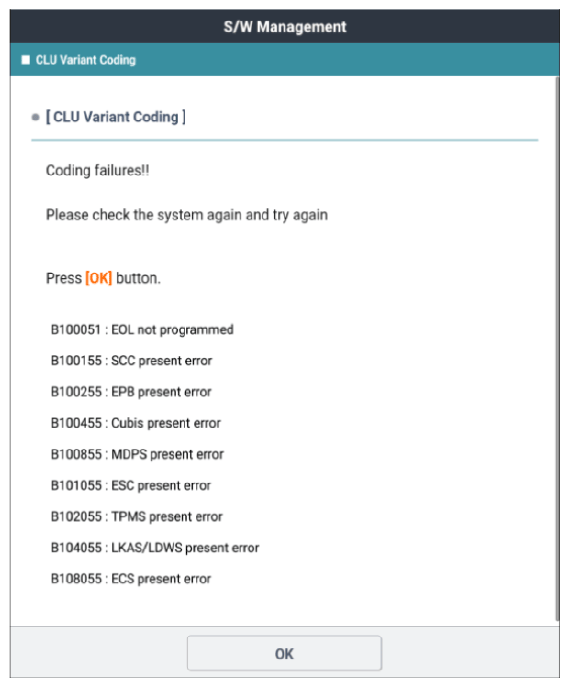

    G13162308Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    • Replace cluster module and perform "CLU Variant Coding" procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF REPAIR " procedure.

    NO
