Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

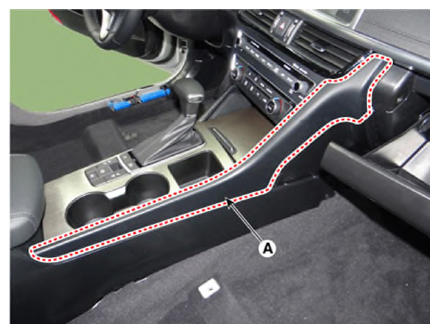

  2. Using a screwdriver or remover, remove the front console garnish (A).
    G13158892Courtesy of KIA MOTORS AMERICA, INC.

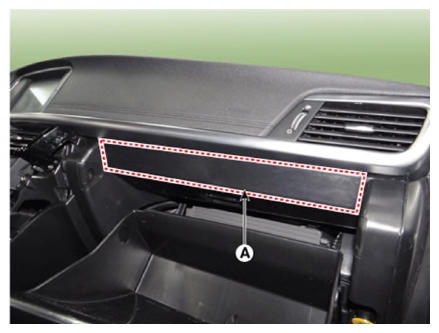

  3. Using a screwdriver or remover, remove the glove box cap (A).
    G13158893Courtesy of KIA MOTORS AMERICA, INC.

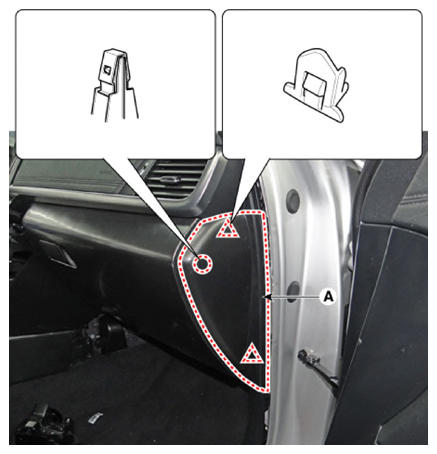

  4. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
    G13158894Courtesy of KIA MOTORS AMERICA, INC.

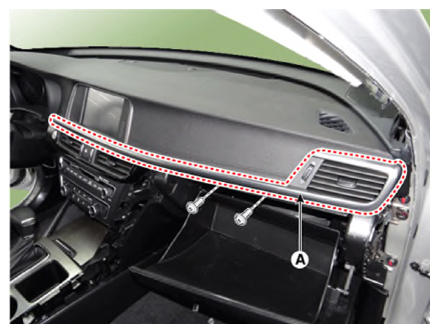

  5. Remove the crash pad garnish [RH] (A) after loosening the screws.
    G13158895Courtesy of KIA MOTORS AMERICA, INC.

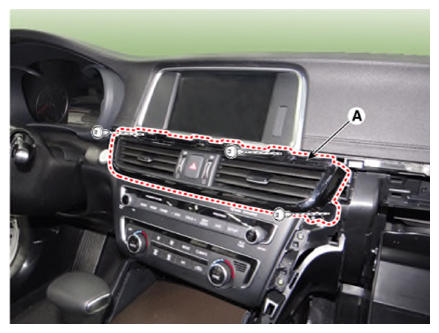

  6. Remove the center fascia panel (A) after loosening the screws.
    G13158896Courtesy of KIA MOTORS AMERICA, INC.

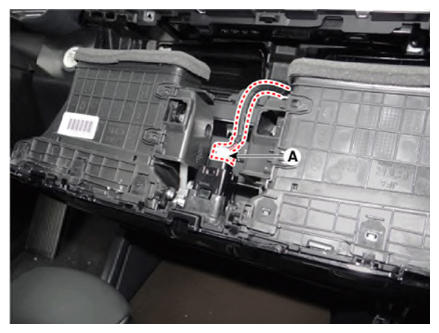

  7. Disconnect the hazard switch connector (A).
    G13158897Courtesy of KIA MOTORS AMERICA, INC.

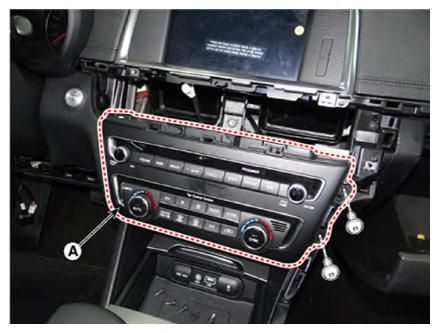

  8. Remove the center fascia lower panel (A) after loosening the screws.
    G13158898Courtesy of KIA MOTORS AMERICA, INC.

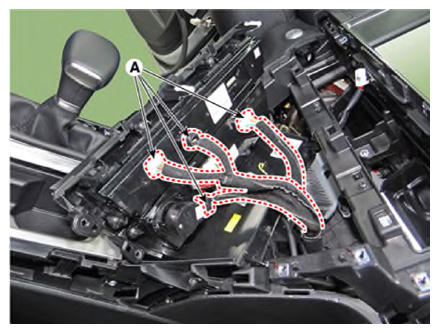

  9. Disconnect the heater & A/C control unit connectors (A).
    G13158899Courtesy of KIA MOTORS AMERICA, INC.

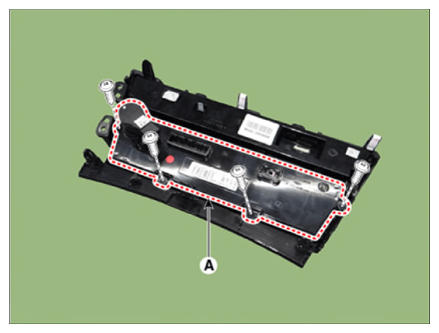

  10. Remove the heater & A/C control unit (A) from the center fascia lower panel after loosening the screws.
    G13158900Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
