Washer Fluid Level Sensor Switch

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Remove the front wheel guard [RH].

    (Refer to Body - "FRONT WHEEL GUARD ")

  4. Drain the washer fluid to less than 650 cc.

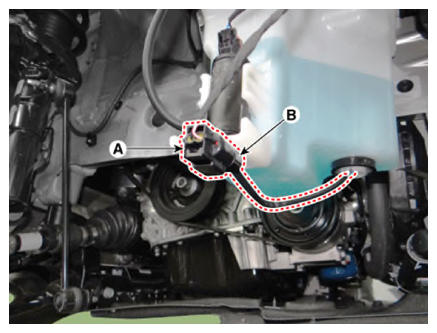

  5. Remove the washer fluid level sensor switch (B) after disconnecting the connector (A).
    G13158618Courtesy of KIA MOTORS AMERICA, INC.
