Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front door module.

    (Refer to Front Door - "FRONT DOOR MODULE ")

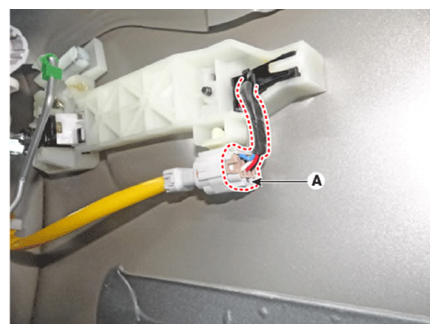

  2. Disconnect the front door outside handle connector (A).
    G13157250Courtesy of KIA MOTORS AMERICA, INC.

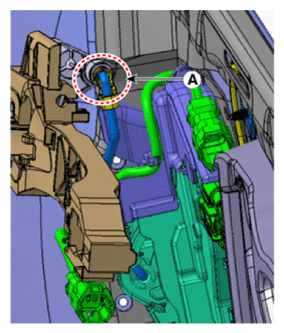

  3. Disconnect the front door latch rod (A).
    G13157251Courtesy of KIA MOTORS AMERICA, INC.

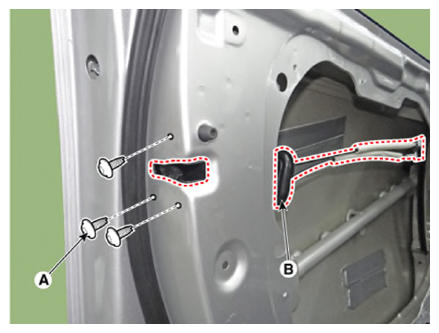

  4. Remove the front door latch (B) after loosening the mounting screw (A).
    G13157252Courtesy of KIA MOTORS AMERICA, INC.

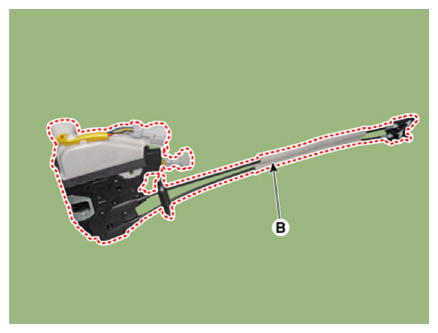

    G13157253Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.

    Information

    • Make sure that the connector is connected properly.
    • Make sure that the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips.
