Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

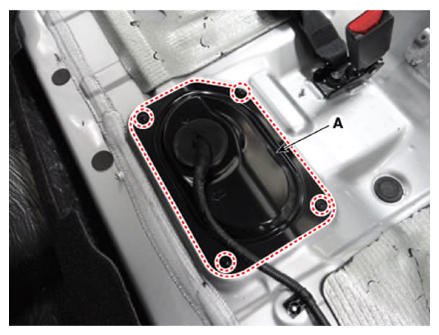

  4. Remove the fuel pump service cover (A).
    G13155882Courtesy of KIA MOTORS AMERICA, INC.

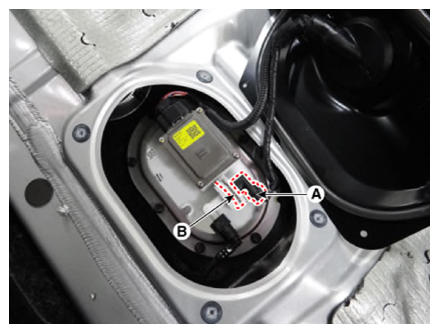

  5. Disconnect the fuel pressure sensor connector (A).
  6. Remove the fuel pressure sensor fixing pin (B).
  7. Remove the fuel pressure sensor from the fuel pump.
    G13155883Courtesy of KIA MOTORS AMERICA, INC.
