Dimensions Projected

WARNING: This page is about a different variant/trim than selected.

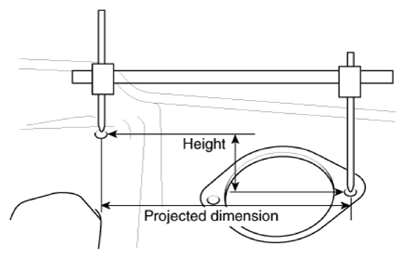

  1. These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for used for body alterations.
  2. If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the different value in height of the two surface.
    G13154858Courtesy of KIA MOTORS AMERICA, INC.
