Repair Procedures: Replacement: [A/T]

WARNING: This page is about a different variant/trim than selected.

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

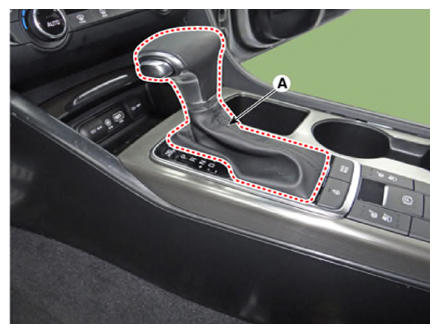

Pull out and remove the gear knob & boots.

Courtesy of KIA MOTORS AMERICA, INC.

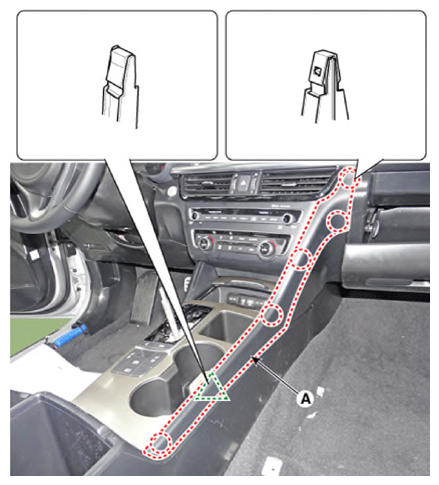

Remove the console garnish (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

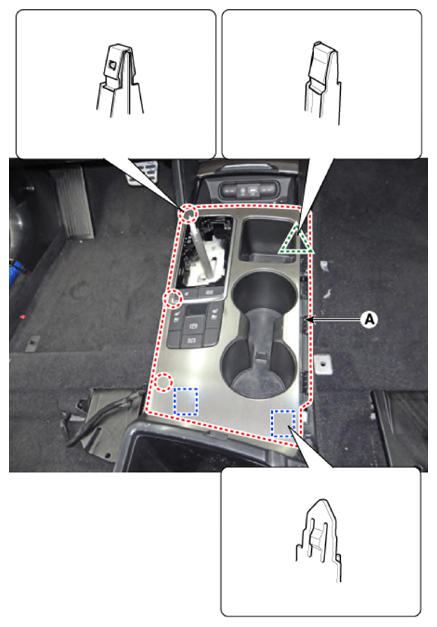

Remove the front console upper cover (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

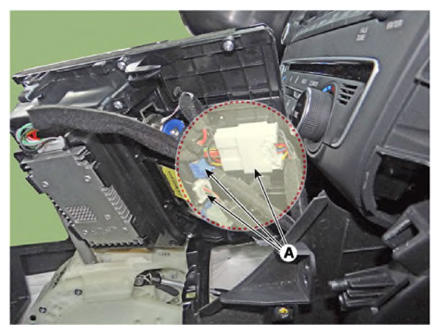

Disconnect the console upper cover connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

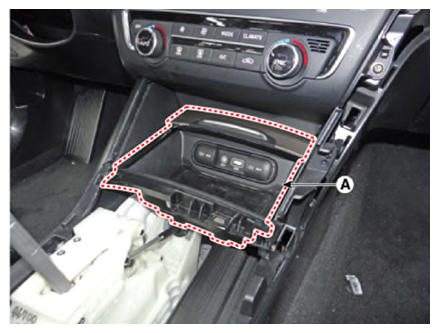

Remove the front console tray (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

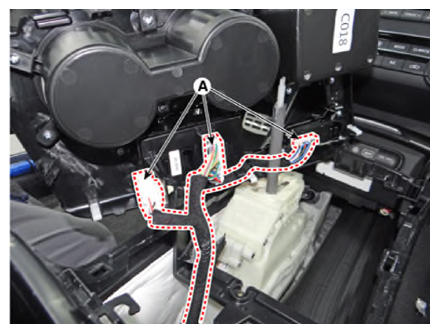

Disconnect the console tray connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

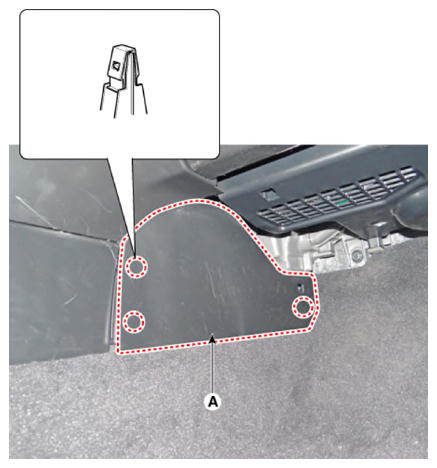

Remove the console side cover (A).

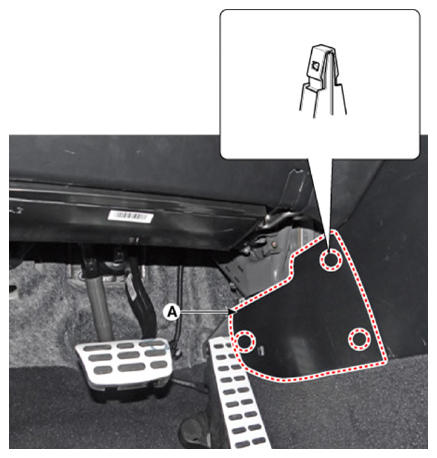

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

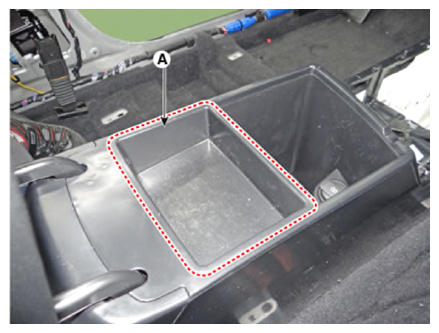

Remove the console armrest tray (A).

Courtesy of KIA MOTORS AMERICA, INC.

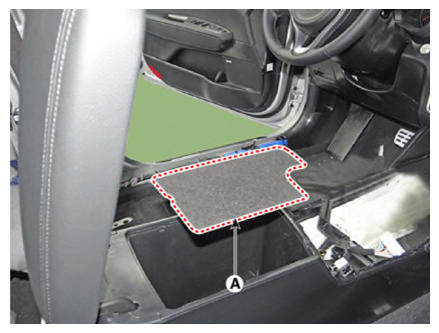

Remove the storage box pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

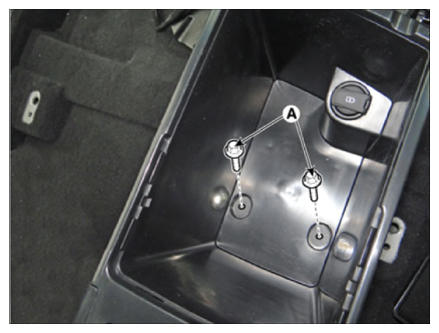

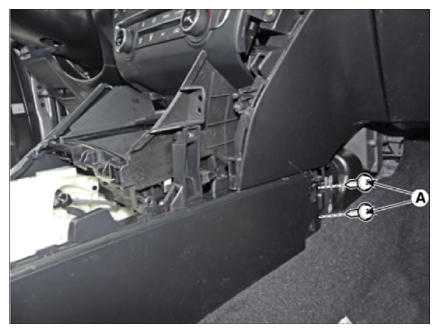

Loosen the console mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

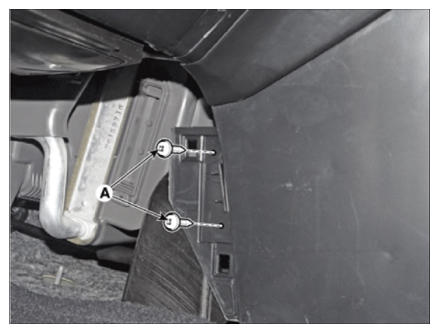

Loosen the front console mounting screws (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

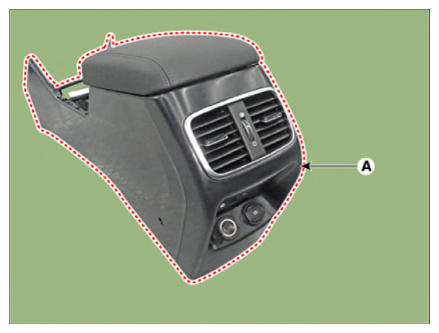

Remove the console assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damage clips.
