Hybrid Power Control Unit (HPCU) Tray
WARNING: This page is about a different variant/trim than selected.
- Remove the hybrid power control unit.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")

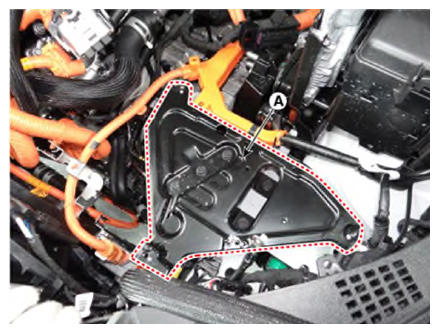

- Remove the hybrid power control unit tray (A) after loosening the mounting bolts.
Hybrid Power Control Unit (HPCU) tray mounting bolt:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)
