Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the clutch pressure sensor in the reverse order of removal.

    Clutch pressure sensor installation:  11 - 15 N.m (1.1 - 1.5 kgf.m, 8.0 - 11.1 lb.ft)

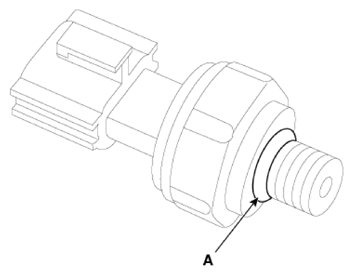

    NOTE: When installing, apply the ATF oil to the O-ring (A).
    G13159033Courtesy of KIA MOTORS AMERICA, INC.
  2. Perform the clutch pressure sensor calibration (Refer to "CLUTCH PRESSURE SENSOR CALIBRATION ").
