Section 125 (Engine Control System (HEV))
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>

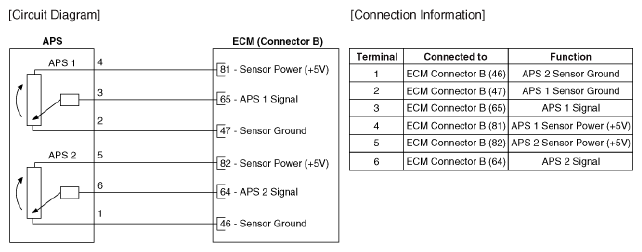

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
