Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
  3. Remove the mass air flow sensor (C).

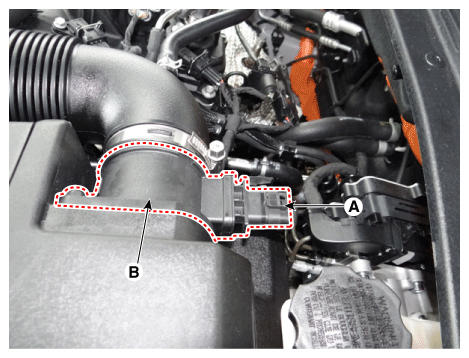

Fig 1: Locating MAFS Connector
G12308921Courtesy of KIA MOTORS AMERICA, INC.
