Circuit Diagram

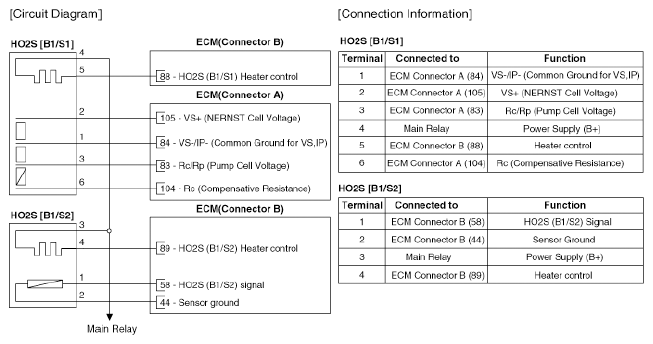

G12932791

Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

[Bank 1/Sensor 1]

G12932792

Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

G12932793

Courtesy of KIA MOTORS AMERICA, INC.
