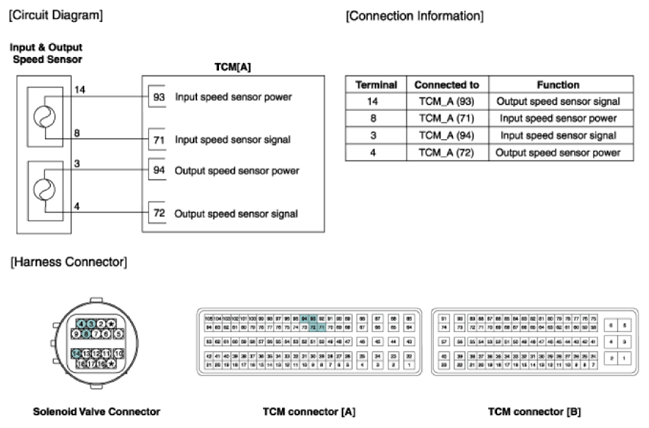

Home >> Kia >> 2019 >> Optima Plug-In Hybrid EX, 2.0L Eng VIN F >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (PHEV) >> Output Speed Sensor >> Schematic Diagrams >> Circuit Diagram
