Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the engine cover.

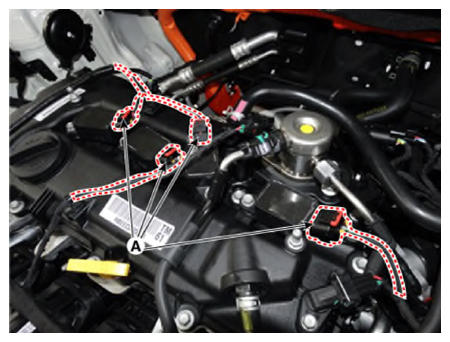

Disconnect the ignition coil connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

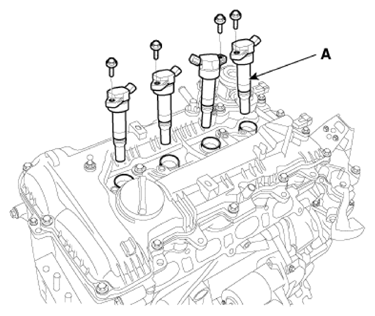

Remove the ignition coil (A) after loosening the mounting bolt.

Ignition coil mounting bolt :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)

Courtesy of KIA MOTORS AMERICA, INC.

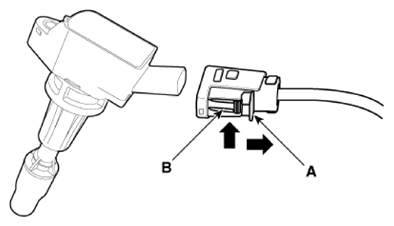

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Courtesy of KIA MOTORS AMERICA, INC.
