Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the roof trim.

    (Refer to Body (Interior and Exterior) - "ROOF TRIM ASSEMBLY ")

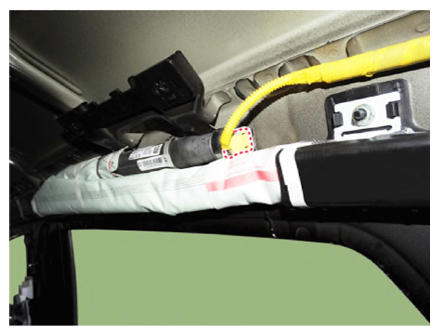

  3. Disconnect the connector (A) from the curtain airbag module.
    G13156770Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.
    G13156771Courtesy of KIA MOTORS AMERICA, INC.
