Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

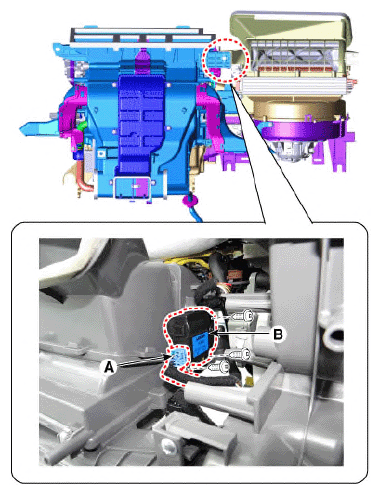

  3. Disconnect the connector (A) and then remove the intake actuator (B) after loosening the screws.
    G13082744Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
