BSD Radar Calibration

WARNING: This page is about a different variant/trim than selected.

Check for proper installation of BSD ECU (RH) and repair as necessary.
- In case Sensor installation angle is out of specification. (Angle ±5 degree)
- In case Sensor installation angle is changed from bumper damage or deterioration or installation position shifting by accident.
BSD Radar Calibration Procedure.
1. Align steering wheel and wheels straight.
2. Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)
3. Connect KDS to Data Link Connector (DLC).
4. Select "Vehicle S/W management" with KDS.
5. Select "BSD Radar Calibration" under Vehicle S/W management.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Monitor "Diagnostic Trouble Codes (DTC)" with KDS after performing Vehicle S/W management.
Is DTC status displayed as Present?
YES
- Carefully check for correct variant coding set.

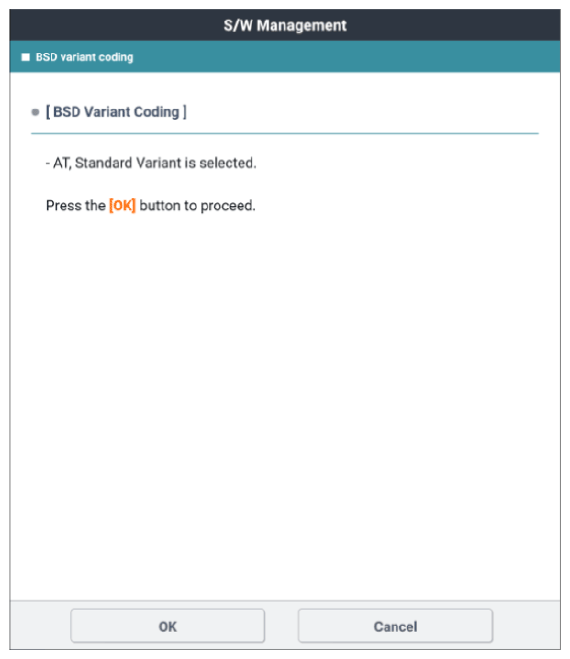

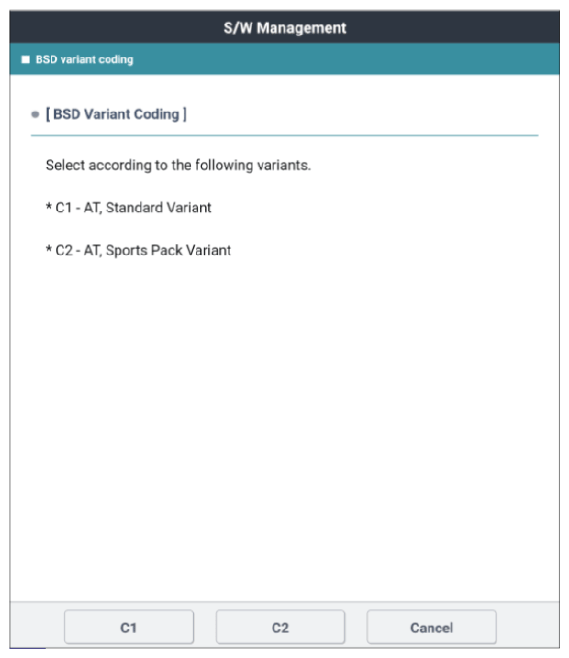

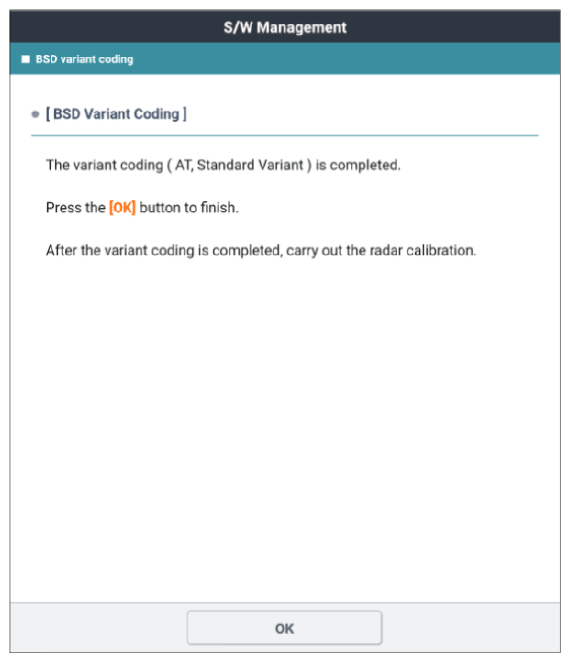

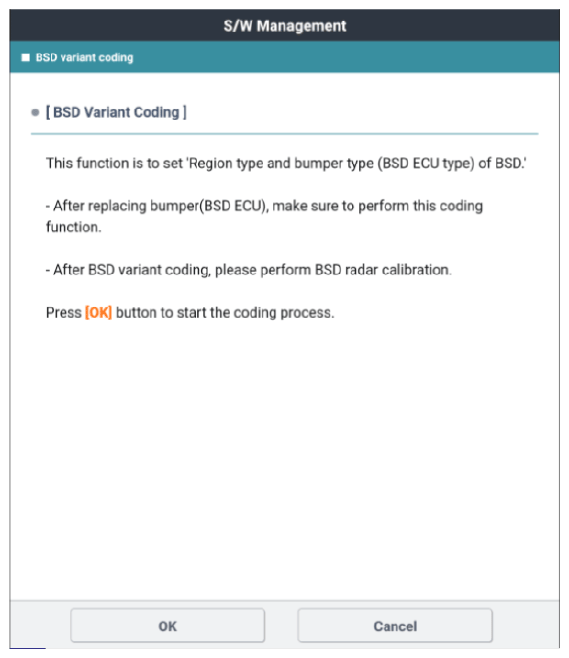

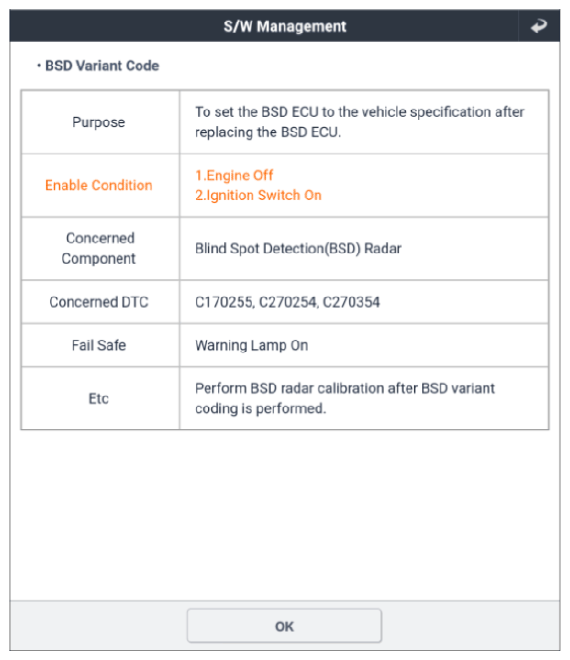

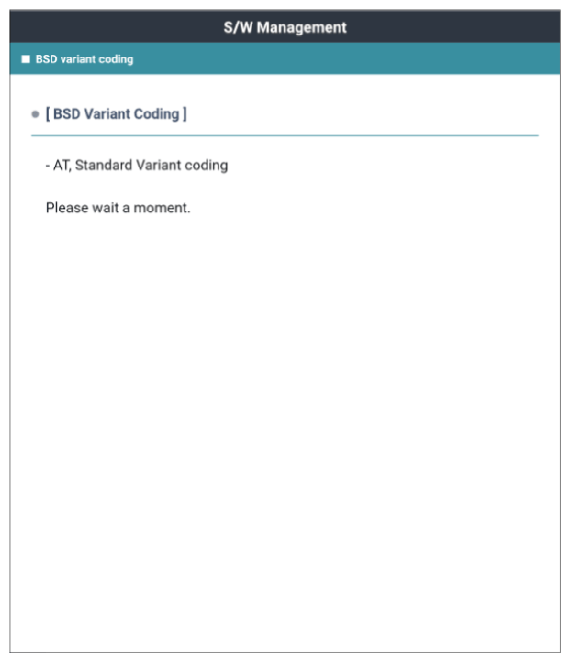

- If not, perform Variant Coding procedure with correct vehicle setting.
- If problem still occurs, substitute with known-good BSD ECU and then check for proper operation. If problem is corrected, replace BSD ECU and then go to "VERIFICATION OF REPAIR " procedure.
- In case of BSD ECU is replaced, BSD Radar Calibration must be performed.
NO
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
