Sensor Software Version Mis-Match Check

WARNING: This page is about a different variant/trim than selected.

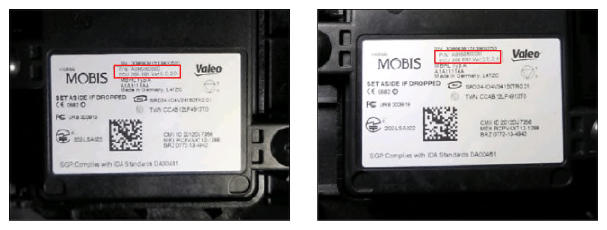

  1. Check for software version on the BSD sensor label.
  2. Ignition "OFF" and then "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
    G13161457Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    • Substitute with a known-good BSD ECU and check for proper operation. If the problem is corrected, replace BSD ECU and then go to "VERIFICATION OF REPAIR " procedure.
    • In case of BSD ECU is replaced, BSD Radar Calibration must be performed.

    NO
