Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

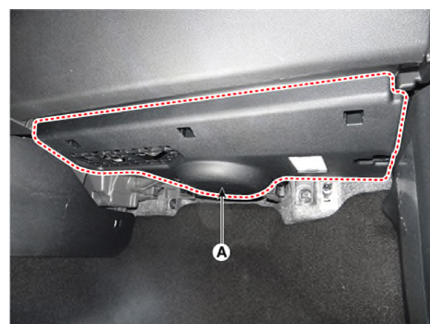

  2. Remove the crash pad under cover [RH] (A).
    G13158753Courtesy of KIA MOTORS AMERICA, INC.

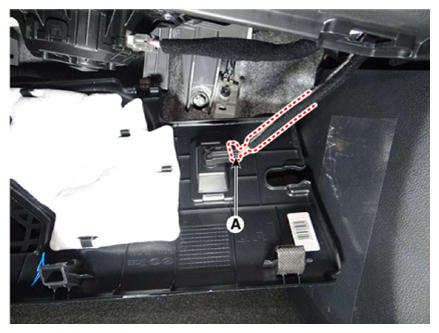

  3. Disconnect the crash pad under cover connector (A).
    G13158754Courtesy of KIA MOTORS AMERICA, INC.

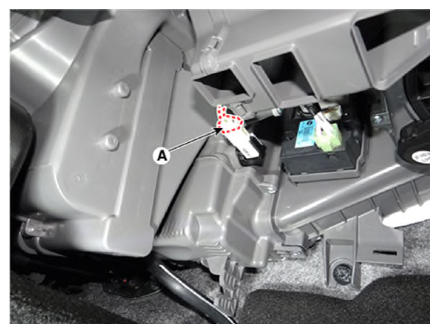

  4. Disconnect the evaporator temperature sensor connector (A).
    G13158755Courtesy of KIA MOTORS AMERICA, INC.

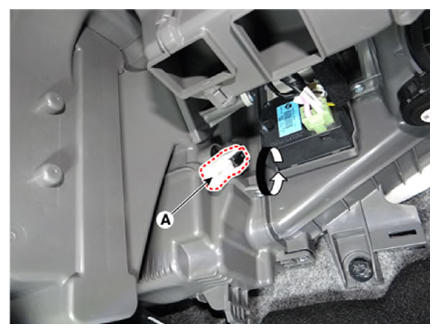

  5. Remove the evaporator temperature sensor (A) by pulling it out after rotating it 90° in a counterclockwise direction.
    G13158756Courtesy of KIA MOTORS AMERICA, INC.

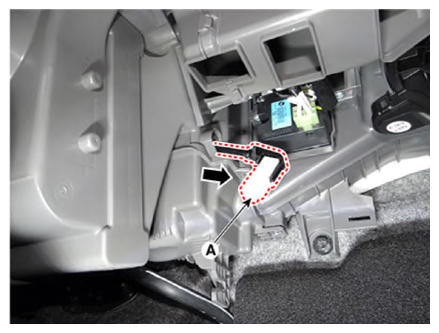

  6. Remove the evaporator temperature sensor (A) in the direction of the arrow.
    G13158757Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
