Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

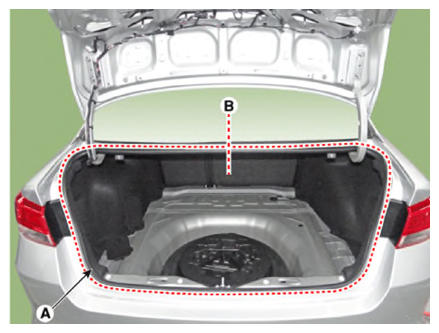

  1. Remove the trunk lid weatherstrip (A).
    NOTE:
    • Do not apply sealant to the body.
    G13157591Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.

    Information

    • Install the weather strip by aligning it with the center line (B).
