[Passenger side]

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the connector and then remove the mode control actuator (A) after loosening the mounting screws.

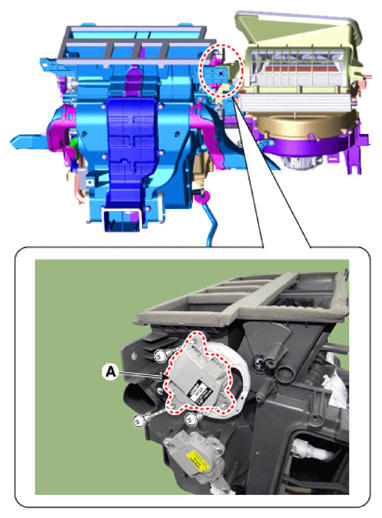

    G13158839Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
