[Driver side]

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

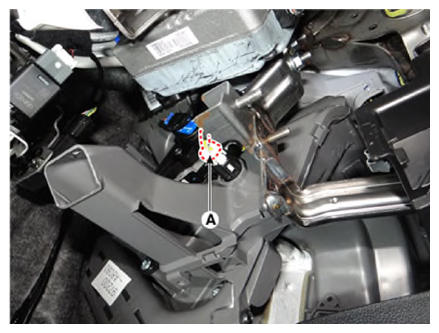

  3. Disconnect the duct sensor connector (A).
    G13158836Courtesy of KIA MOTORS AMERICA, INC.

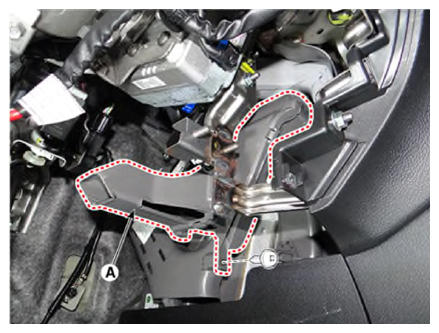

  4. Remove the driver side shower duct (A) after loosening the screw.
    G13158837Courtesy of KIA MOTORS AMERICA, INC.

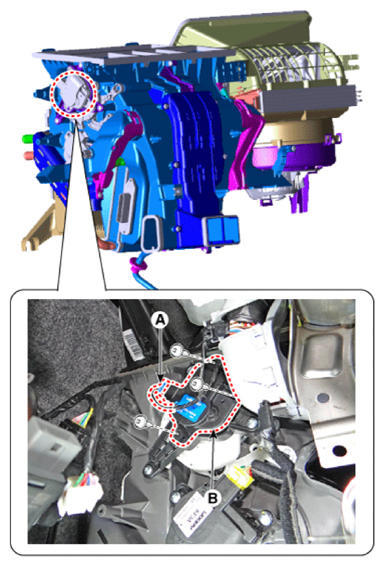

  5. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
    G13158838Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
