[Driver Power Window Module (DDM, IMS)]

WARNING: This page is about a different variant/trim than selected.

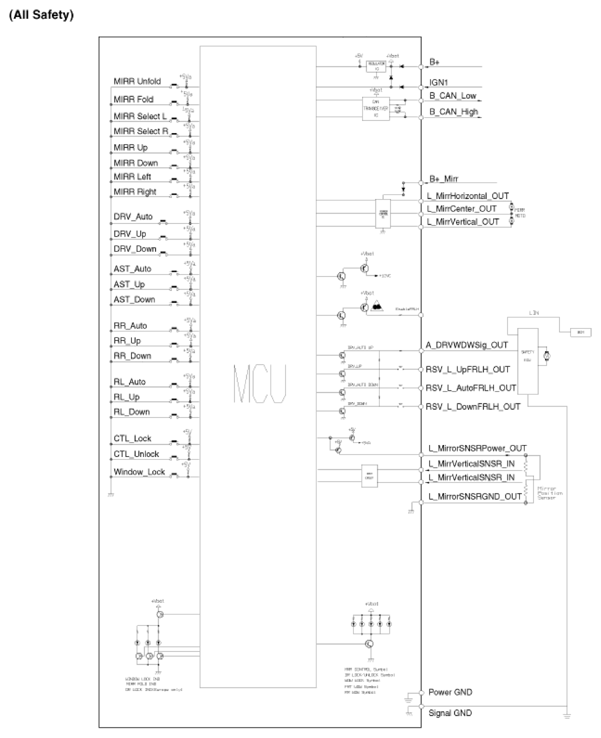

G13158357Courtesy of KIA MOTORS AMERICA, INC.

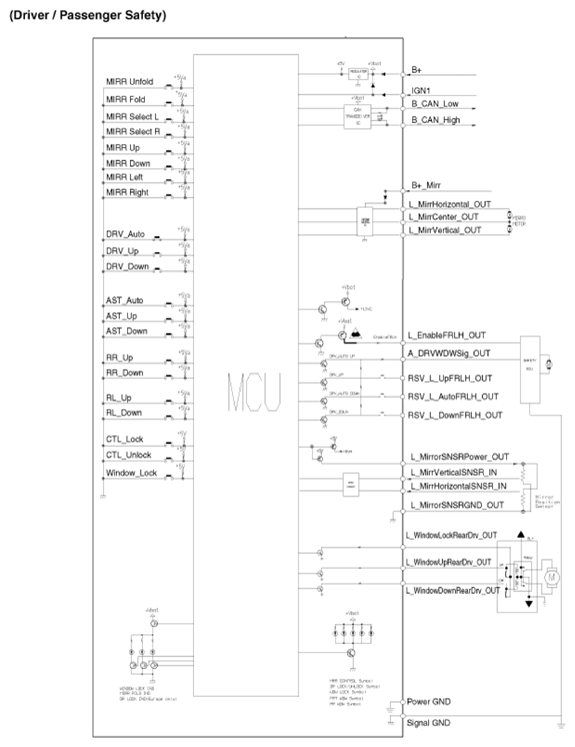

G13158358Courtesy of KIA MOTORS AMERICA, INC.
