Repair Procedures: Removal: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

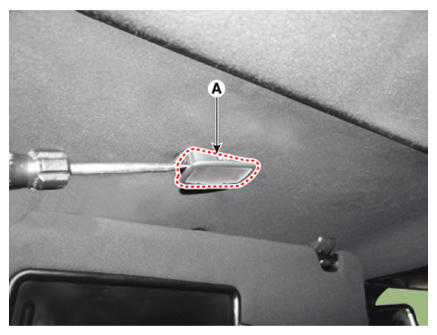

  2. Detach the vanity lamp (A) using a flat-tip screwdriver.
    G13158232Courtesy of KIA MOTORS AMERICA, INC.

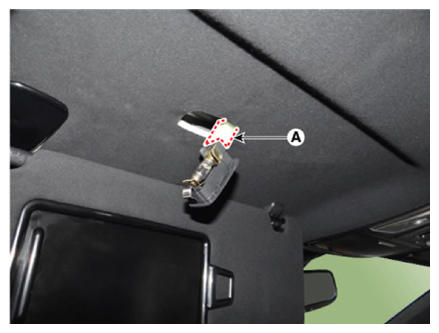

  3. Disconnect the vanity lamp connector (A).
    G13158233Courtesy of KIA MOTORS AMERICA, INC.
