Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

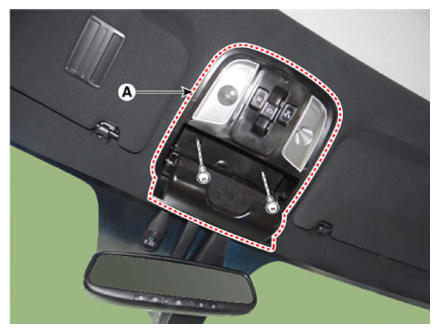

  2. Remove the two mounting screws.

    Then, remove the overhead console (A).

    G13158239Courtesy of KIA MOTORS AMERICA, INC.

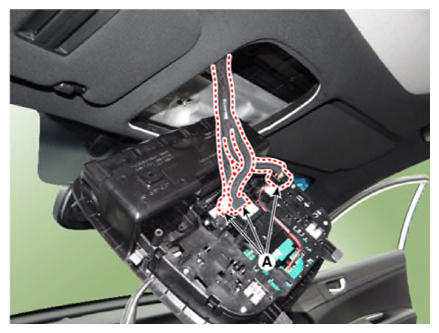

  3. Remove the overhead console after disconnecting the connectors (A).
    G13158241Courtesy of KIA MOTORS AMERICA, INC.
