Cooling Fan Control Module

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

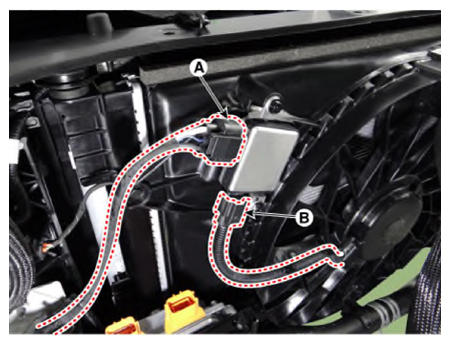

Disconnect the cooling fan control module connector (A) and cooling fan motor connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

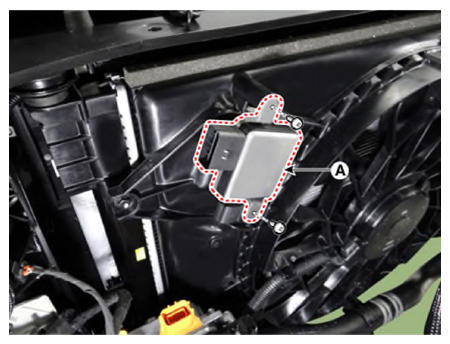

Remove the cooling fan control module (A).
Tightening torque:

4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
