Repair Procedure: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

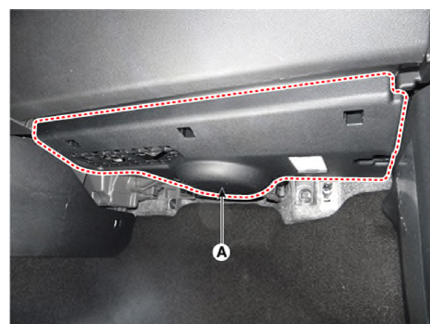

  2. Remove the crash pad under cover (A) by pushing the locking pin.
    G13158874Courtesy of KIA MOTORS AMERICA, INC.

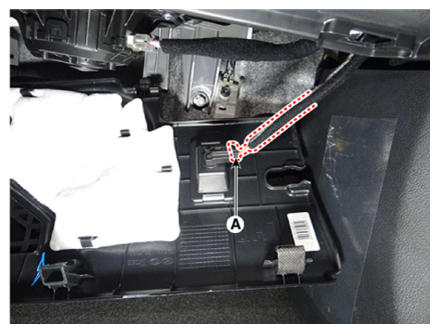

  3. Disconnect the under lamp connector (A).
    G13158875Courtesy of KIA MOTORS AMERICA, INC.

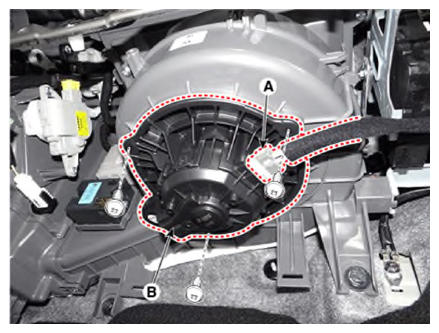

  4. Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
    G13158876Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
