Rear Bumper Antenna

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to Body - "REAR BUMPER COVER ")

  3. Remove the rear bumper beam assembly.

    (Refer to Body - "REAR BUMPER BEAM ASSEMBLY ")

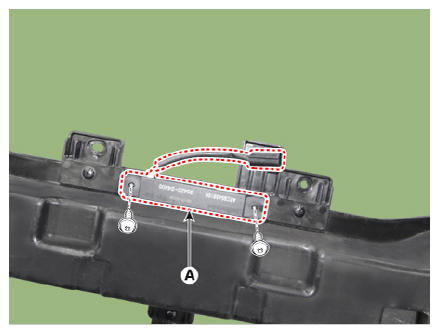

  4. Remove the rear bumper antenna (A) after loosening the mounting screws.
    G13158507Courtesy of KIA MOTORS AMERICA, INC.
