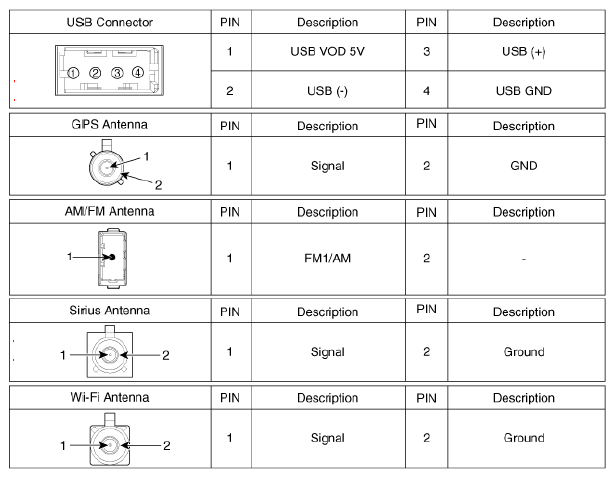

Connector Pin Information
WARNING: This page is about a different variant/trim than selected.
| External Amplifier |
Internal Amplifier |
| No. |
Connector A |
Connector B |
Connector A |
Connector B |
| 1 |
- |
Multimedia-CAN (High) |
Rear left speaker (+) |
Multimedia-CAN (High) |
| 2 |
- |
- |
Front left speaker (+) |
- |
| 3 |
- |
- (Manual parking) |
Front right speaker (+) |
- (Manual parking) |
| 4 |
- |
Steering wheel remote controller |
Rear right speaker (+) |
Steering wheel remote controller |
| 5 |
AMP SPDIF GND |
- |
- (AMP SPDIF_GND) |
- |
| 6 |
AMP SPDIF (+) |
- (MTS key) |
- (AMP SPDIF_(+)) |
- (MTS key) |
| 7 |
- (ALT_L) |
- (AUX_Video) |
- (ALT_L) |
- (AUX_Video) |
| 8 |
Illumination (+) |
AUX Audio_R |
Illumination (+) |
AUX Audio_R |
| 9 |
- (Reverse) |
AUX Audio_GND |
- (Reverse) |
AUX Audio_GND |
| 10 |
- |
MIC (+) |
Rear left speaker (-) |
MIC (+) |
| 11 |
- |
Battery (+) |
Front left speaker (-) |
Battery (+) |
| 12 |
- |
Battery (+) |
Front right speaker (-) |
Battery (+) |
| 13 |
- |
Multimedia-CAN (Low) |
Rear right speaker (-) |
Multimedia-CAN (Low) |
| 14 |
IGN1 |
- (Auto light) |
IGN1 |
- (Auto light) |
| 15 |
AMP SPDIF (-) |
- (P-position) |
- (AMP SPDIF_(-)) |
- (P-position) |
| 16 |
- (Door unlock status) |
Vehicle speed |
- (Door unlock status) |
Vehicle speed |
| 17 |
- |
Steering wheel remote controller_GND |
- |
Steering wheel remote controller_GND |
| 18 |
Antenna Power (+) |
ACC |
Antenna Power (+) |
ACC |
| 19 |
|
- (AUX Video_GND) |
|
- (AUX Video_GND) |
| 20 |
AUX_Detect |
AUX_Detect |
| 21 |
AUX Audio_L |
AUX Audio_L |
| 22 |
MIC (-) |
MIC (-) |
| 23 |
GND |
GND |
| 24 |
GND |
GND |
| External Amplifier |
Internal Amplifier |
| Type |
SVM Camera |
Rear Camera |
SVM Camera |
Rear Camera |
| No. |
Connector C |
| 1 |
Chassis-CAN (Low) |
| 2 |
Chassis-CAN (High) |
| 3 |
- |
| 4 |
- |
| 5 |
- |
| 6 |
SVM video camera_Shield |
- |
SVM video camera_Shield |
- |
| 7 |
SVM video camera |
- |
SVM video camera |
- |
| 8 |
SVM video camera_GND |
- |
SVM video camera_GND |
- |
| 9 |
- |
| 10 |
- |
| 11 |
Body-CAN (High) |
| 12 |
Body-CAN (Low) |
| 13 |
Ground |
- |
Ground |
- |
| 14 |
- (Airbag) |
| 15 |
- |
| 16 |
AMP NAVI Voice (-) |
- AMP NAVI Voice (-) |
| 17 |
AMP NAVI Voice (+) |
- AMP NAVI Voice (+) |
| 18 |
- (Door open) |
| 19 |
- (Fuel_indicator) |
| 20 |
- |
| 21 |
SVM video shield (Y) |
Rear camera shield_GND |
SVM video shield (Y) |
Rear camera shield_GND |
| 22 |
SVM video ground (Y) |
Rear camera video_ground |
SVM video ground (Y) |
Rear camera video_ground |
| 23 |
SVM video (Y) |
Rear camera video |
SVM video (Y) |
Rear camera video |
| 24 |
- |
Rear camera power |
- |
Rear camera power |
