Repair Procedures: Replacement

Gel pad

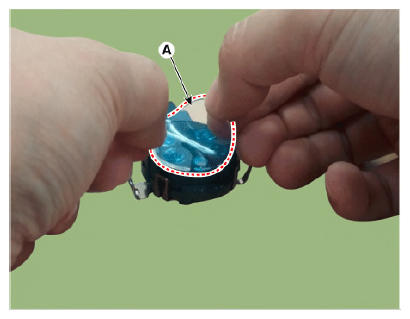

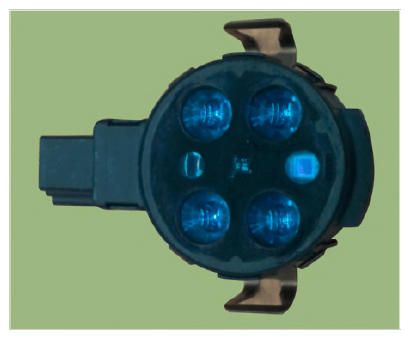

1. Remove the damaged silicone gel pad completely on the lens plate of rain sensor.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • The silicone gel must be fully detached from the rain sensor by rubbing it off with the fingers without any tool.
   • The surface of the lens plate must neither be damaged nor polluted by this activity.

   Information

   It is recommended to remove any residues from the lens plate surface with pressurized air.

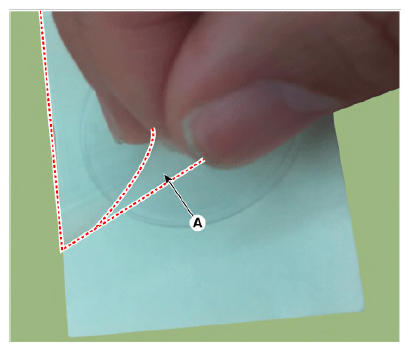

2. Remove the two protection foils (A) from the gel pad.

   Courtesy of KIA MOTORS AMERICA, INC.

3. Attach the silicone gel pad (A) on the lens plate of rain sensor by hand.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
