Circuit Diagram

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

[A Type]

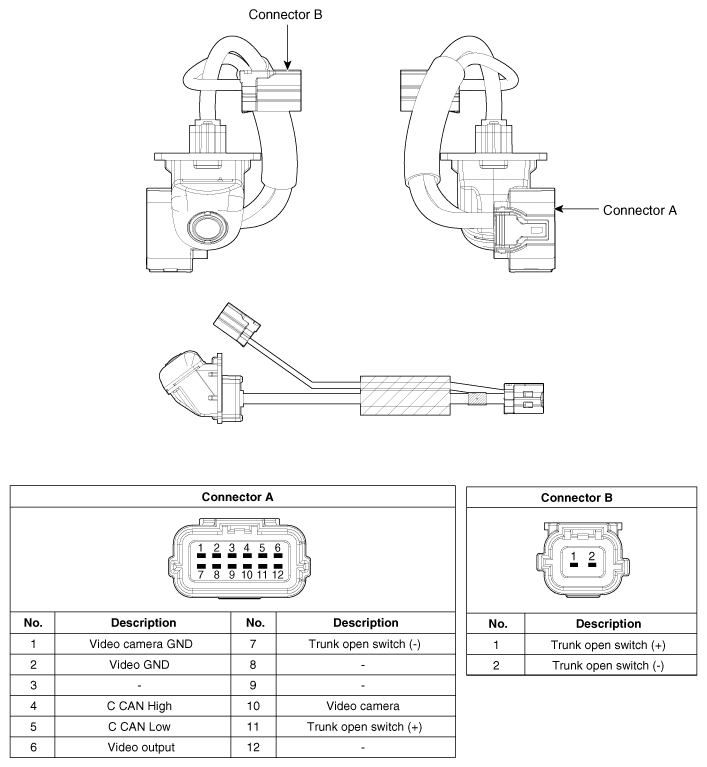

Fig 1: Locating Back View Camera System Connector End View (A Type)

Courtesy of KIA MOTORS AMERICA, INC.

[B Type]

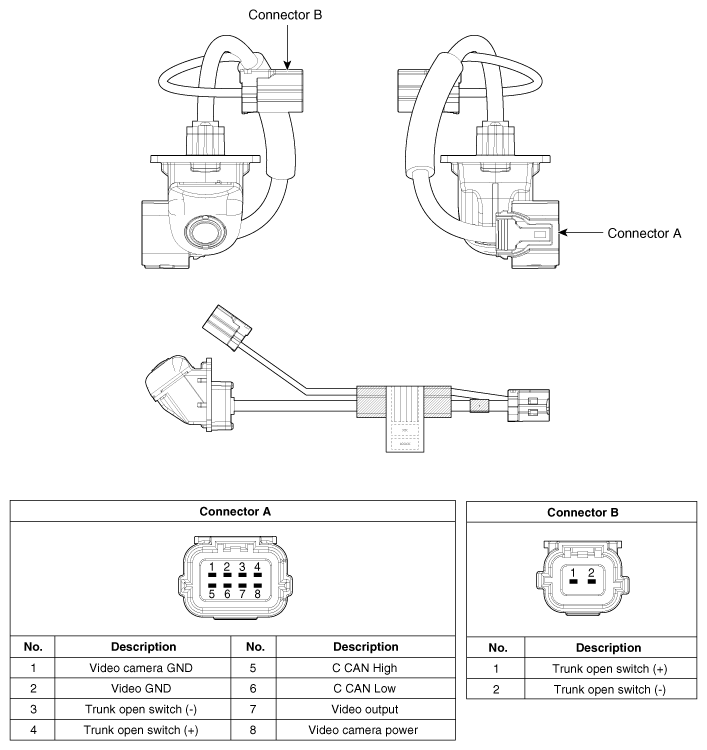

Fig 2: Locating Back View Camera System Connector End View (B Type)

Courtesy of KIA MOTORS AMERICA, INC.

[A Type]

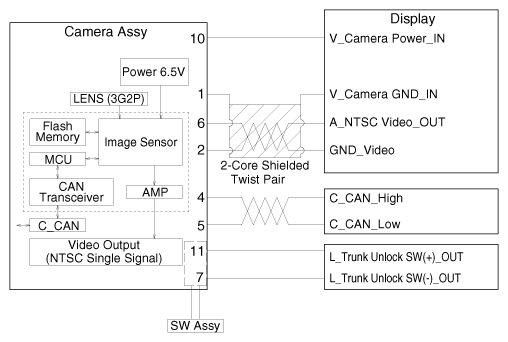

Fig 3: Back View Camera System Circuit Diagram (A Type)

Courtesy of KIA MOTORS AMERICA, INC.

[B Type]

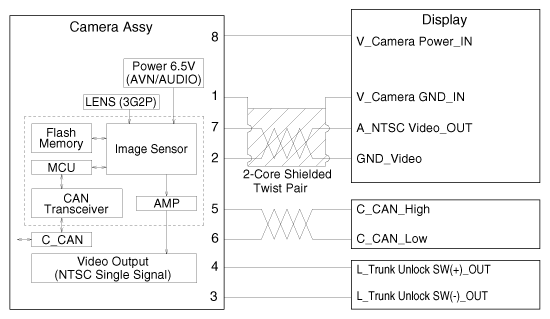

Fig 4: Back View Camera System Circuit Diagram (B Type)

Courtesy of KIA MOTORS AMERICA, INC.
