System Structure (Back view camera operated by steering)

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

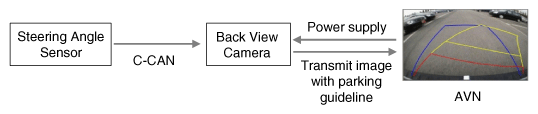

Fig 1: Back View Camera System Communication Diagram
G12312100Courtesy of KIA MOTORS AMERICA, INC.
