Variant Coding Procedure

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

■ On-Line type on KDS/GDS

Ignition "OFF", connect KDS/GDS.
Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
Select Variant coding mode.
Follow steps on the screen as below.

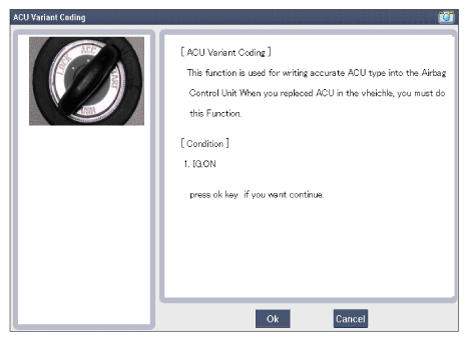

1. Initial ACU Variant Coding screen

  Fig 1: Screen Display - Initial ACU Variant Coding
  Courtesy of KIA MOTORS AMERICA, INC.

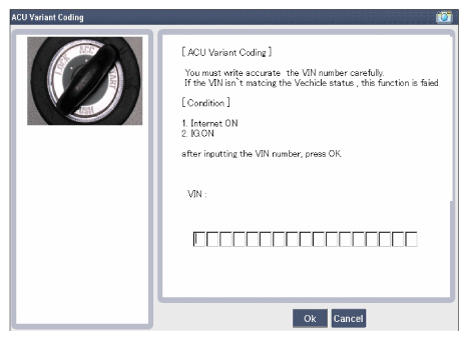

2. VIN Code entering screen

  Fig 2: Screen Display - VIN Code Entering
  Courtesy of KIA MOTORS AMERICA, INC.

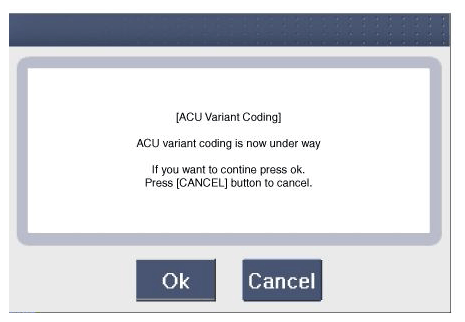

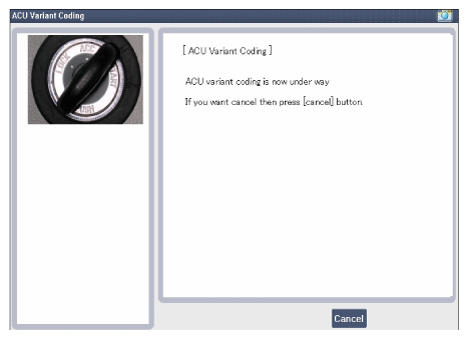

3. Variant coding's proceeding screen-1

  Fig 3: Screen Display - Variant Coding Proceeding-1
  Courtesy of KIA MOTORS AMERICA, INC.

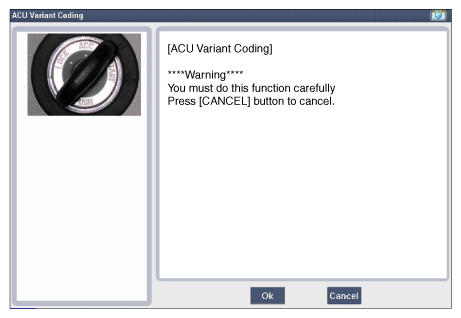

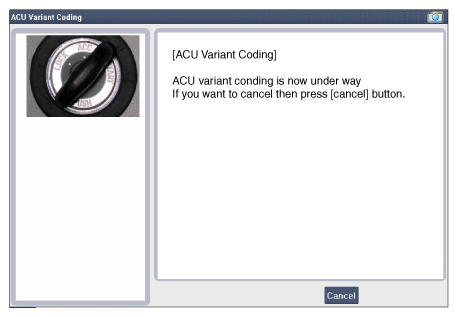

4. Variant coding's proceeding screen-2

  Fig 4: Screen Display - Variant Coding Proceeding-2
  Courtesy of KIA MOTORS AMERICA, INC.

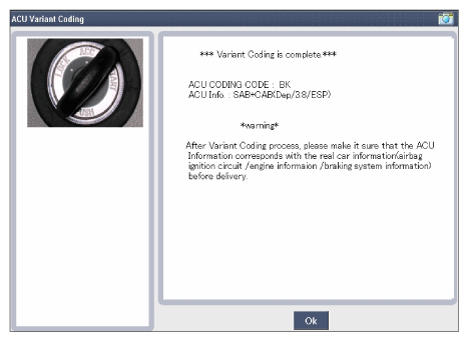

5. Variant coding is completed

  Fig 5: Screen Display - Variant Coding Completed
  Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.

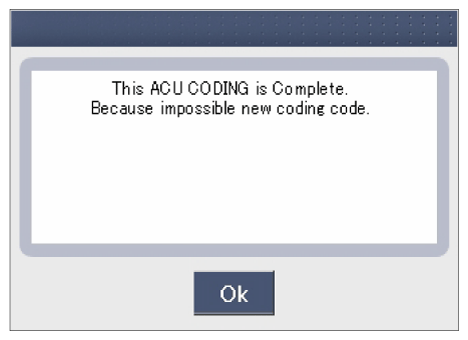

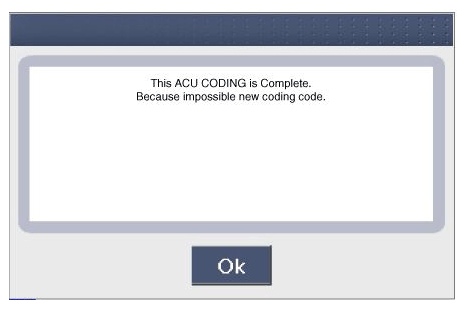

Fig 6: Screen Display - ACU Variant Coding Completed
Courtesy of KIA MOTORS AMERICA, INC.

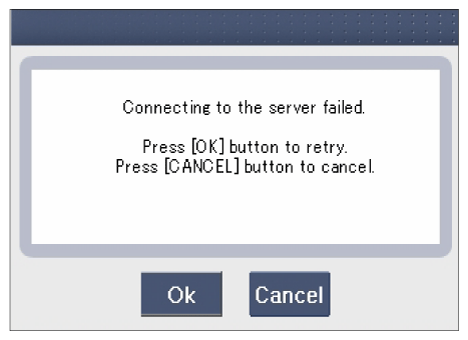

Screen of communication failure

Fig 7: Screen Display - Communication Failure (OK Button)
Courtesy of KIA MOTORS AMERICA, INC.

■ Off-Line Type On KDS/GDS (this Can Be Used When Not Connecting To Internet)

Initial ACU Variant Coding screen

Fig 8: Screen Display - Initial ACU Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

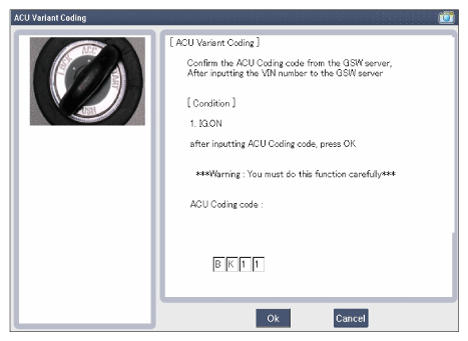

ACU Coding Code entering screen

Fig 9: Screen Display - ACU Coding Code Entering
Courtesy of KIA MOTORS AMERICA, INC.

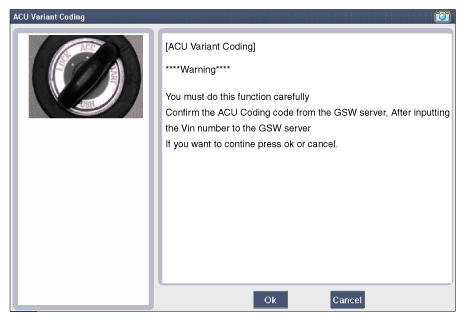

Screen of rechecking ACU Coding code's entering

Fig 10: Screen Display - ACU Coding Code Entering
Courtesy of KIA MOTORS AMERICA, INC.

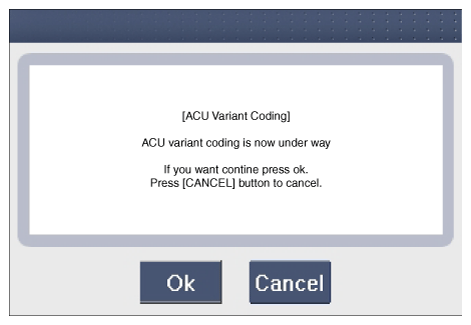

Variant coding's proceeding screen-1

Fig 11: Screen Display - Variant Coding Proceeding-1
Courtesy of KIA MOTORS AMERICA, INC.
Variant coding's proceeding screen-2

Fig 12: Screen Display - Variant Coding Proceeding-2
Courtesy of KIA MOTORS AMERICA, INC.
Variant coding is completed

Fig 13: Screen Display - Variant Coding Completed
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
1. This screen is opened when you try the variant coding again on the SRSCM which has been performed variant coding.

  Fig 14: Screen Display - ALU Variant Coding Completed
  Courtesy of KIA MOTORS AMERICA, INC.
