Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
  2. Remove the front bumper.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

  3. Separate the radiator support upper member (A) after loosening the bolts.

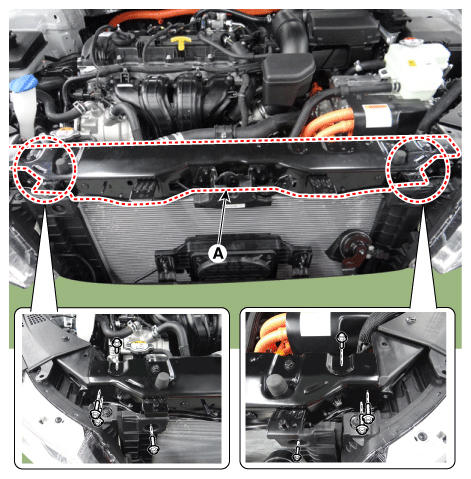

    Fig 1: Locating Radiator Support Upper Member Bolts
    G12309924Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the front impact sensor connector (A).

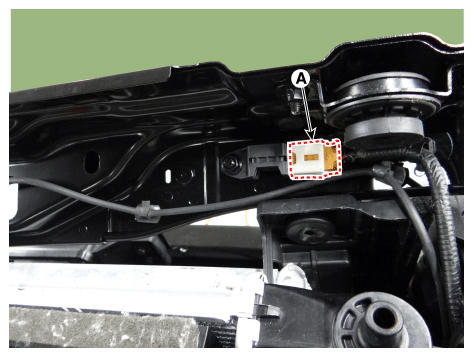

    Fig 2: Locating Front Impact Sensor Connector
    G12309925Courtesy of KIA MOTORS AMERICA, INC.
  5. loosen the Front impact sensor mounting nut (B), and remove the sensor (A).

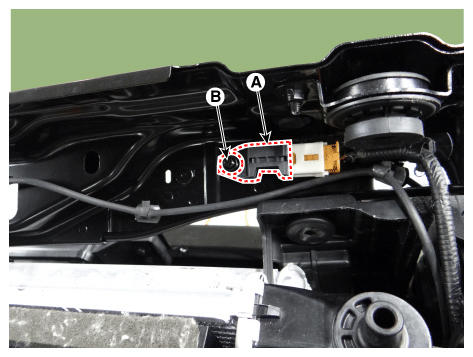

    Fig 3: Locating Front Impact Sensor With Mounting Nut
    G12309926Courtesy of KIA MOTORS AMERICA, INC.
