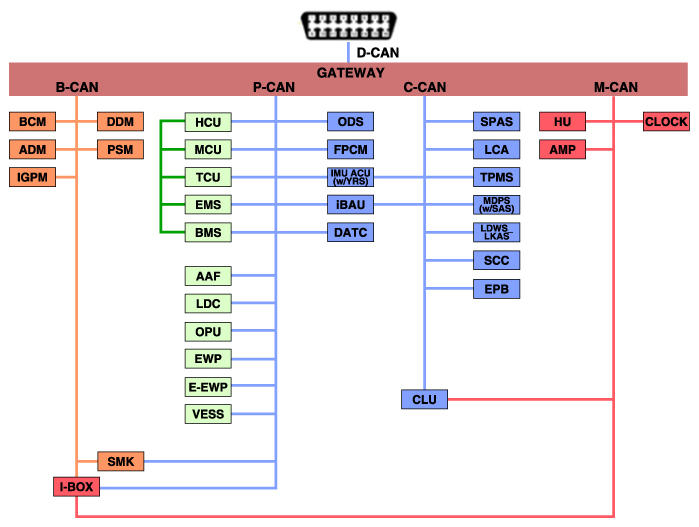

Communication Network Diagram
WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
| Abbreviation | Explanation |
|---|---|
| ABS | Anti-lock Brake System |
| ACU | Airbag Control Unit |
| ADM | Assist Door Module |
| AMP | External Amplifier |
| B_CAN | Body Controller Area Network |
| BCM | Body Control Module |
| BMS | Battery Management System |
| BSD | Blind Spot Detection |
| C_CAN | Chassis Controller Area Network |
| CLOCK | Clock |
| CLU | Cluster Module |
| DATC | Dual Automatic Temp Control |
| DDM | Driver Door Module |
| EMS | Engine Management System |
| EPB | Electronic Parking Brake |
| ESC | Electronic Stability Program |
| EWP | Electric Water Pump |
| FPCM | Fuel Pump Control Module |
| HCU | Hybrid Control Unit |
| HU | Head Unit |
| IGPM | Integrated Gateway & Power control Module |
| LDC | Low DC/DC Converter |
| LDWS | Lane Departure Warning System |
| M_CAN | Multi media Controller Area Network |
| MCU | Motor Control Unit |
| MDPS | Motor Driven Power Steering |
| ODS | Occupant Detection Sensor |
| P_CAN | Powertrain Controller Area Network |
| PSM | Power Seat Module |
| SAS | Steering Angle Sensor |
| SCC | Smart Cruise Control |
| SMK | Smart Key Unit |
| SPAS | Smart Parking Assist System |
| TCU | Transmission Control Unit |
| TMU | Telematics System |
| TPMS | Tire Pressure Monitoring System |
| VDC | Vehicle Dynamic Control |
| VESS | Virtual Engine Sound System |
