Signal Waveform & Data

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

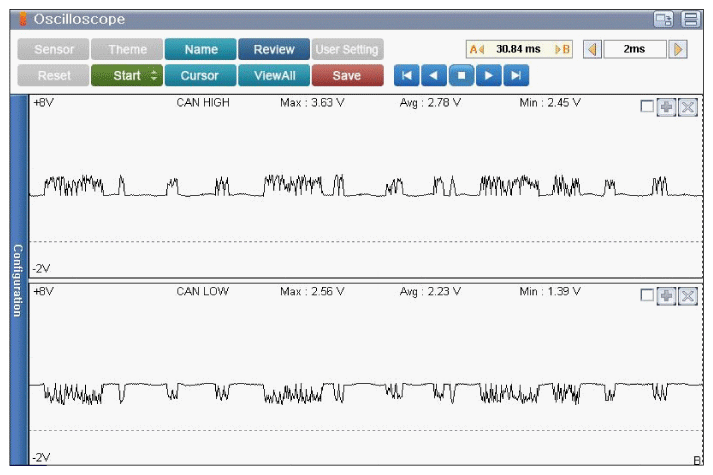

Fig 1: Screen Display - C-CAN Low & High Signal Waveform
G12303623Courtesy of KIA MOTORS AMERICA, INC.

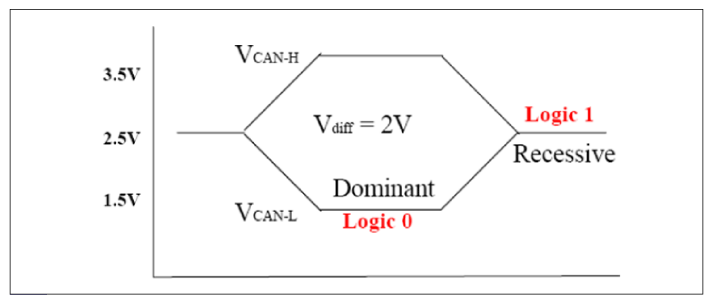

Fig 2: Screen Display - C-CAN Bus Voltage Level (High Speed CAN)
G12303624Courtesy of KIA MOTORS AMERICA, INC.
