Circuit Diagram

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

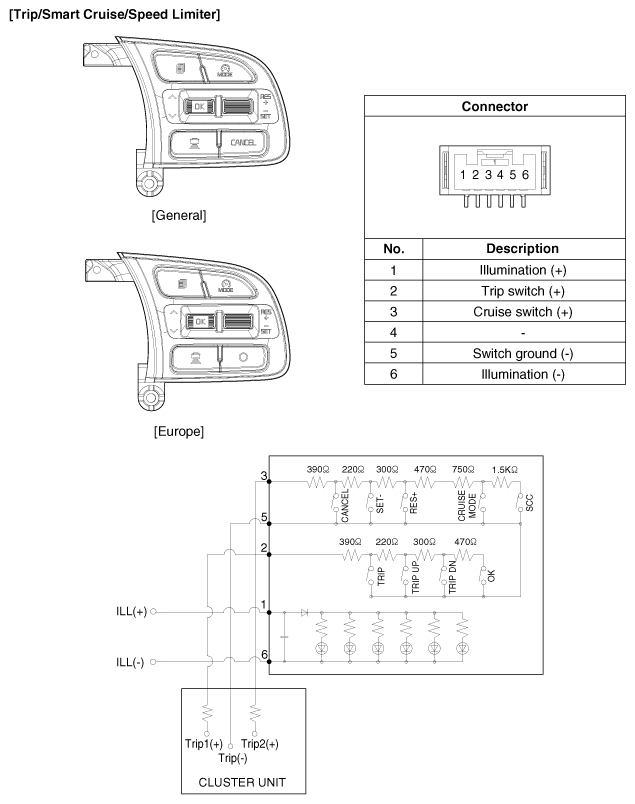

Fig 1: Advanced Smart Cruise Control (ASCC) Switch Circuit (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

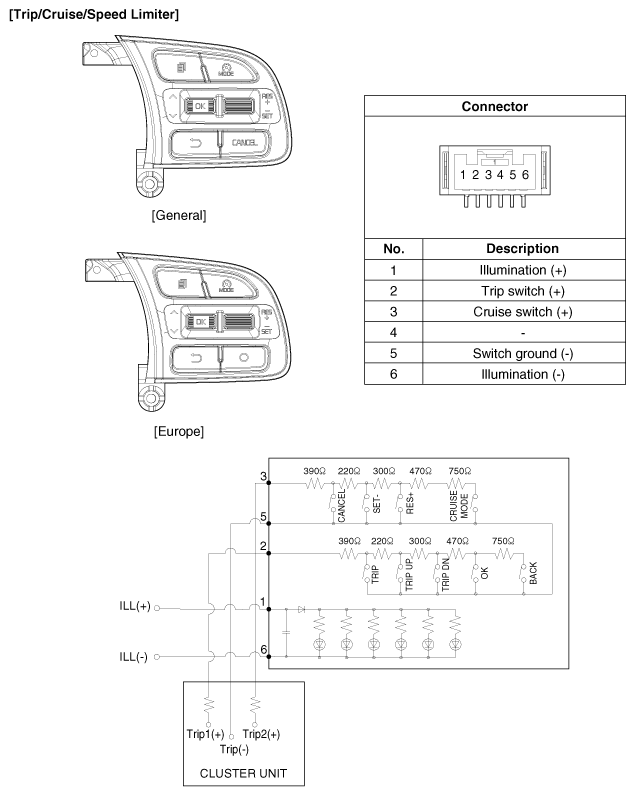

Fig 2: Advanced Smart Cruise Control (ASCC) Switch Circuit (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

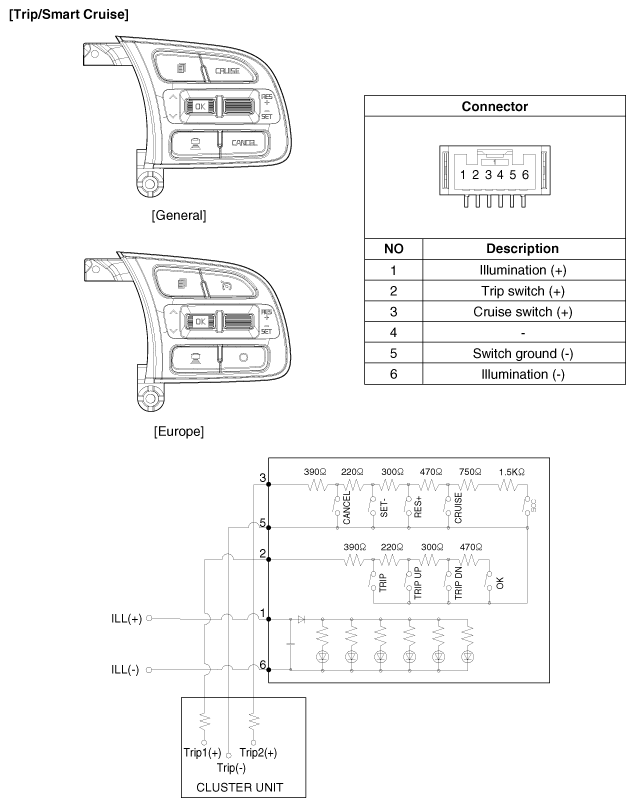

Fig 3: Advanced Smart Cruise Control (ASCC) Switch Circuit (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

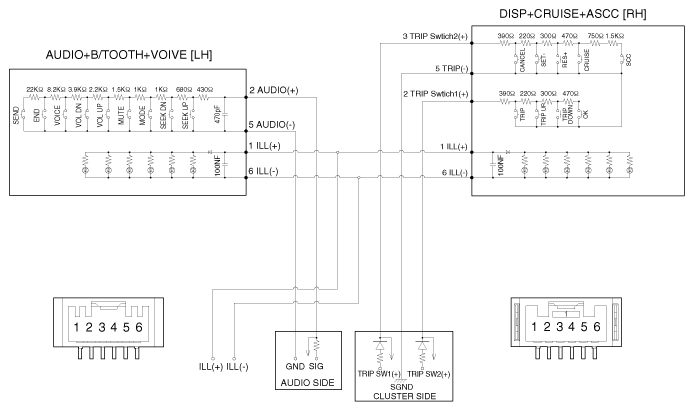

Fig 4: Advanced Smart Cruise Control (ASCC) Switch Circuit (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

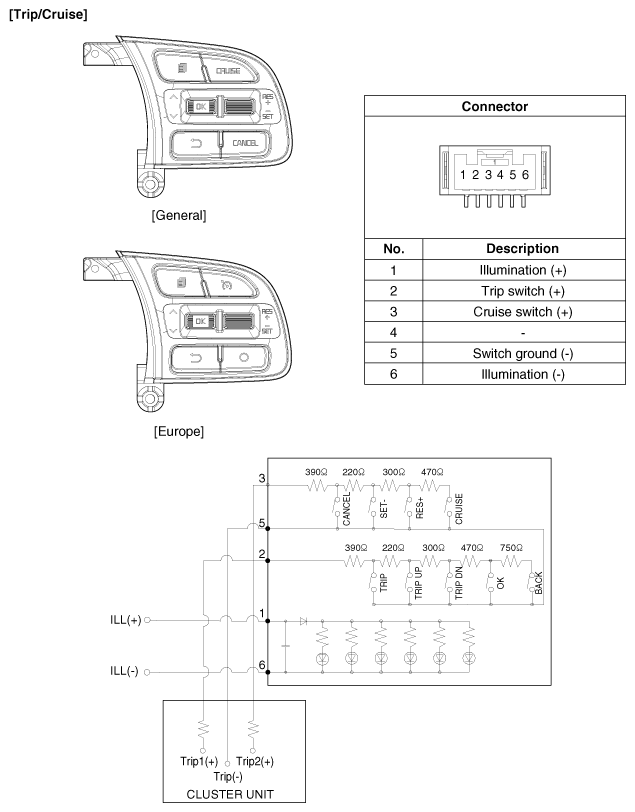

Fig 5: Advanced Smart Cruise Control (ASCC) Switch Circuit (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
