Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to Body - "REAR BUMPER COVER ")

  3. Disconnect the BSD connector (A) and then remove the BSD unit (B) after loosening the screws.
CAUTION: Be careful when removing the blind spot detection unit. The bracket may break off from the bumper.

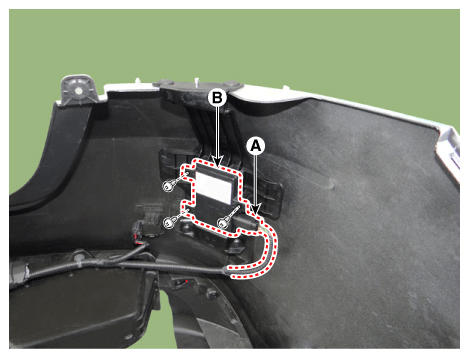

Fig 1: Locating BSD Connector And BSD Unit With Screws
G12312131Courtesy of KIA MOTORS AMERICA, INC.
NOTE: When removing the BSD unit, be careful not to damage the bracket of BSD.
