Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the BSD switch (B) after pressing the locking pin (A).

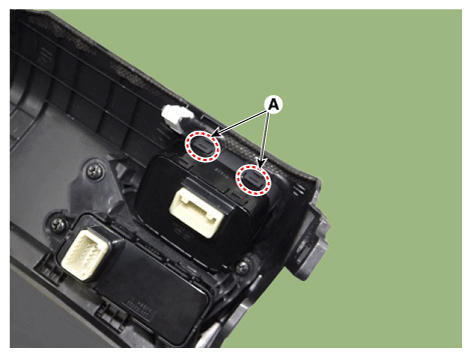

Fig 1: Locating Locking Pin
G12312137Courtesy of KIA MOTORS AMERICA, INC.

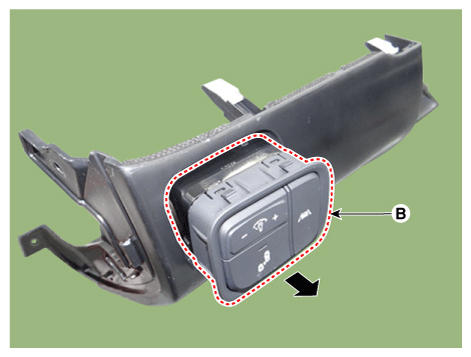

Fig 2: Removing BSD Switch
G12312138Courtesy of KIA MOTORS AMERICA, INC.
