Circuit Diagram

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

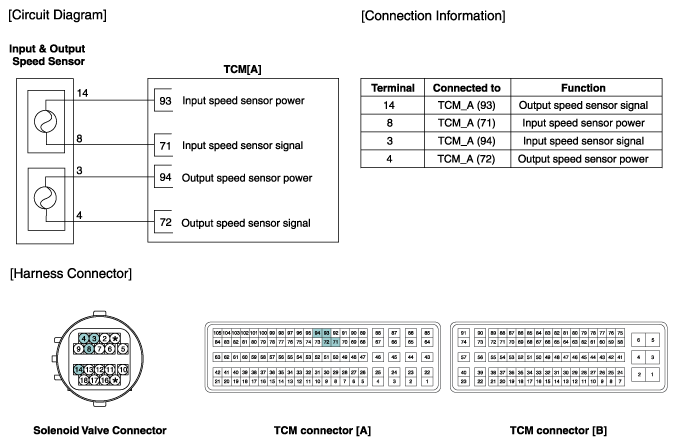

Fig 1: Input Speed Sensor Circuit
G12309161Courtesy of KIA MOTORS AMERICA, INC.
