Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

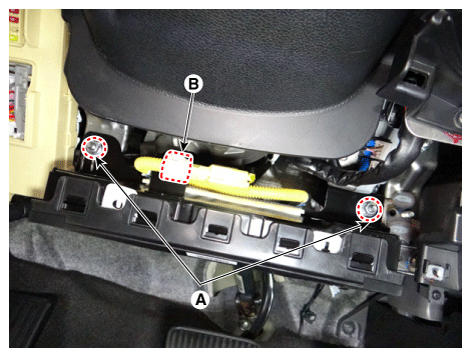

  3. Loosen the nuts (A) and then disconnect the connector (B).
G12350097Courtesy of KIA MOTORS AMERICA, INC.
