Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the loof trim.

    (Refer to Body (Interior and Exterior) - "ROOF TRIM ASSEMBLY ")

  3. Disconnect the connector (A) from the curtain airbag module.

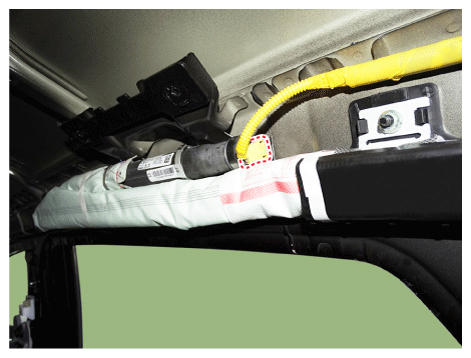

    G12350094Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.
G12350095Courtesy of KIA MOTORS AMERICA, INC.
