Check PCM Communication

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "ON" & Engine "OFF"
  2. Connect KDS/GDS and setup the oscilloscope.
  3. Back probe and measure signal waveform of Pin No. 14 (EMS) terminal of PCM main harness connector and chassis ground by using VMI A channel.

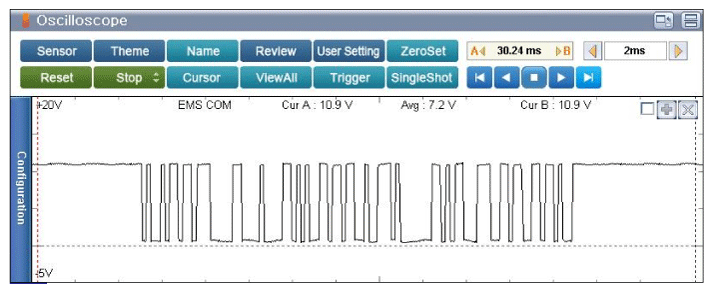

    Specification  : Refer to Figure below

    G12364678Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured signal waveform normal?

    YES

    • Fault is intermittent caused by poor contact in Smart key unit and/or PCM's connector or was repaired and Smart Key unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification Of VEHICLE REPAIR " procedure.

    NO

    • Go to "SMK Status Information" procedure.
