Resetting Adaptive Values

  1. Connect KDS to DLC (Data Link Cable).
  2. Ignition "ON" & ENG "OFF"
  3. Select the "Vehicle S/W Management  " about related DTC with KDS.

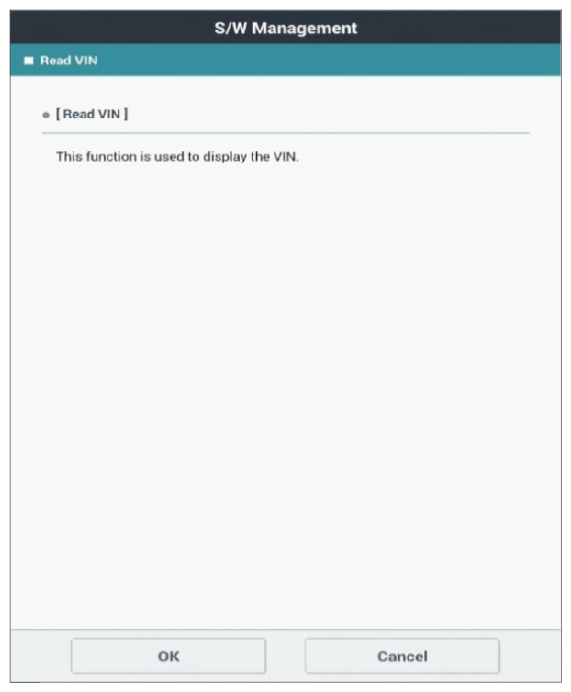

    G12922764Courtesy of KIA MOTORS AMERICA, INC.

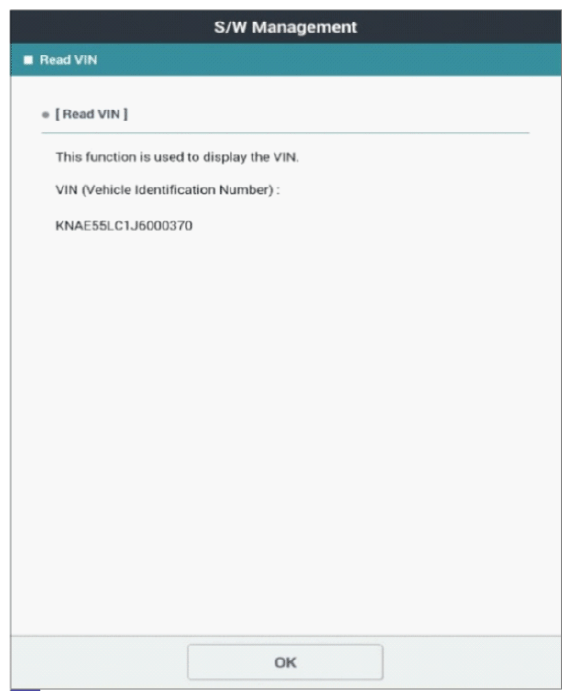

    G12922765Courtesy of KIA MOTORS AMERICA, INC.

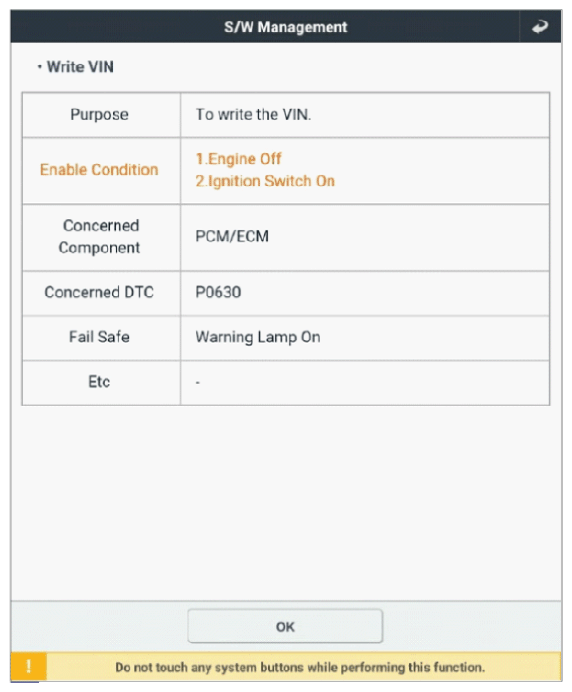

    G12922766Courtesy of KIA MOTORS AMERICA, INC.

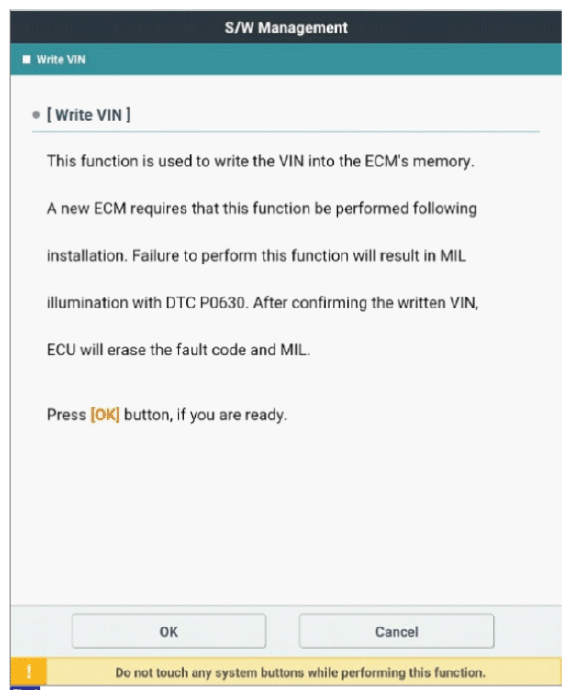

    G12922767Courtesy of KIA MOTORS AMERICA, INC.

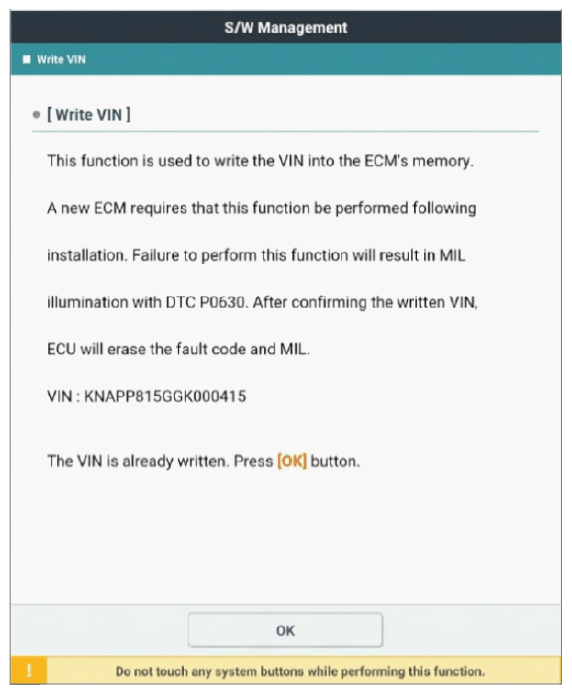

    G12922768Courtesy of KIA MOTORS AMERICA, INC.
  4. When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "VERIFICATION OF REPAIR " procedure.
