Repair Procedures: Removal

  1. Remove the bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

  2. Disconnect the ASCC radar connector (A).
  3. Remove the ASCC radar (B) after loosening the mounting nut.

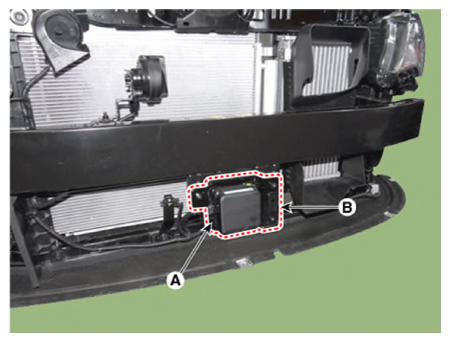

    G12915105Courtesy of KIA MOTORS AMERICA, INC.

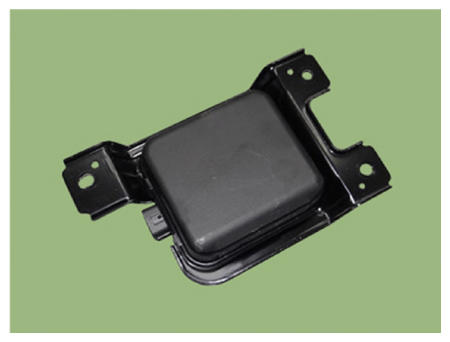

    G12915106Courtesy of KIA MOTORS AMERICA, INC.
