Circuit Diagram

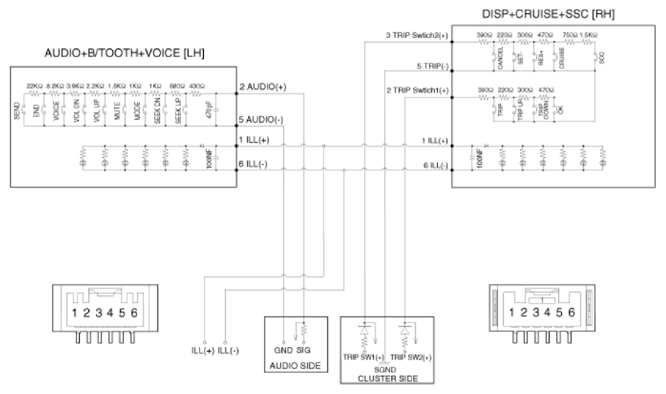

G12915123Courtesy of KIA MOTORS AMERICA, INC.

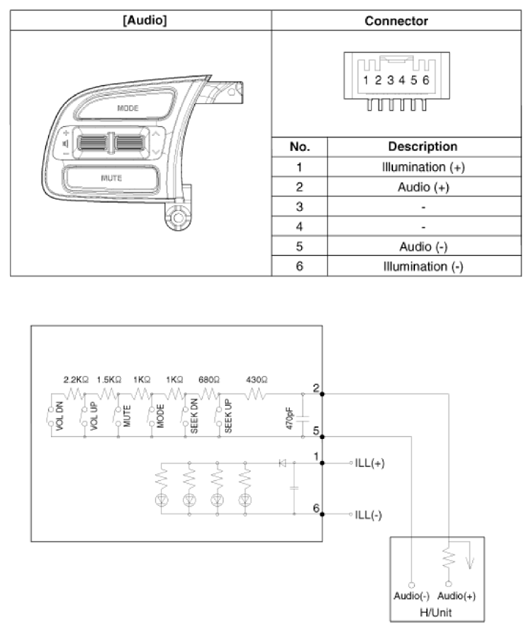

G12915124Courtesy of KIA MOTORS AMERICA, INC.

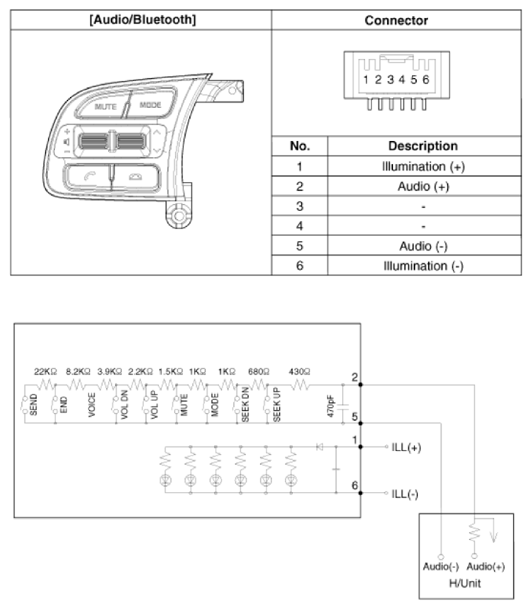

G12915125Courtesy of KIA MOTORS AMERICA, INC.

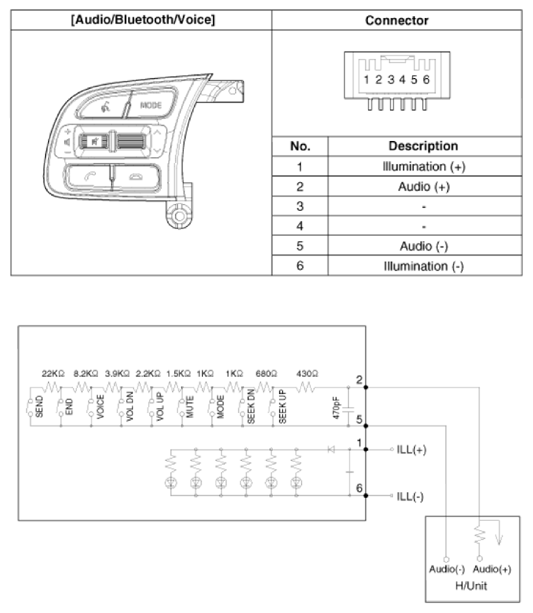

G12915126Courtesy of KIA MOTORS AMERICA, INC.

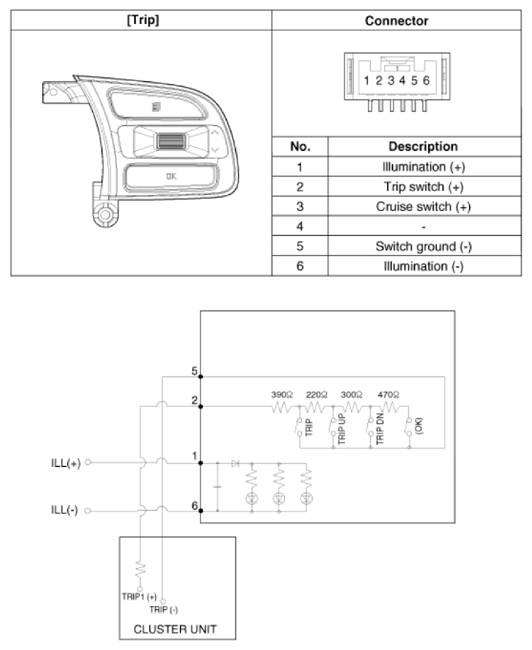

G12915127Courtesy of KIA MOTORS AMERICA, INC.

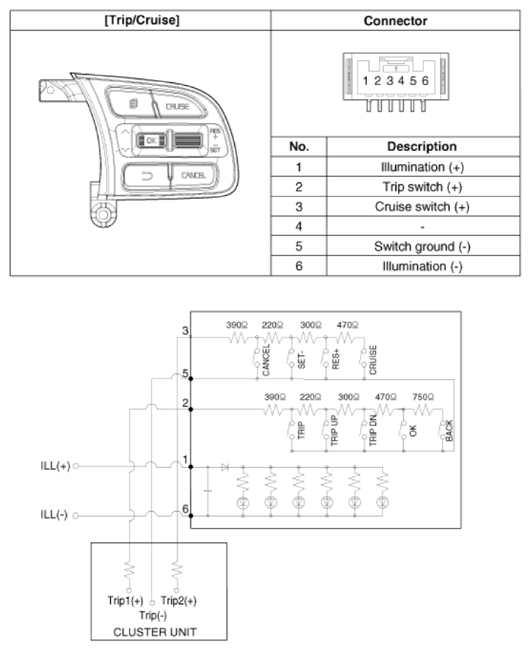

G12915128Courtesy of KIA MOTORS AMERICA, INC.

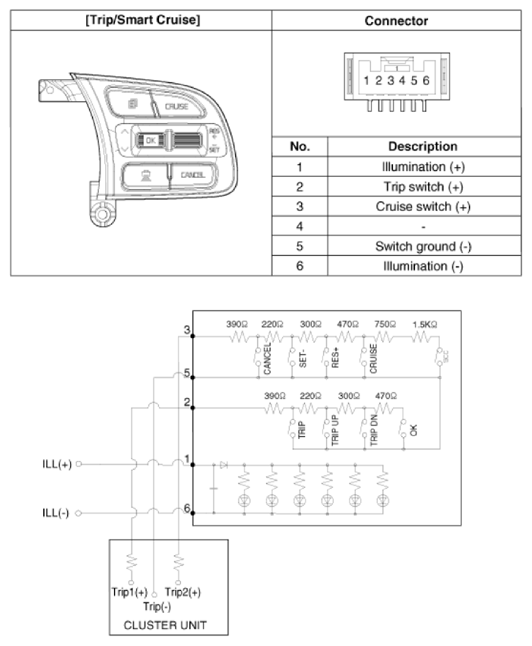

G12915129Courtesy of KIA MOTORS AMERICA, INC.

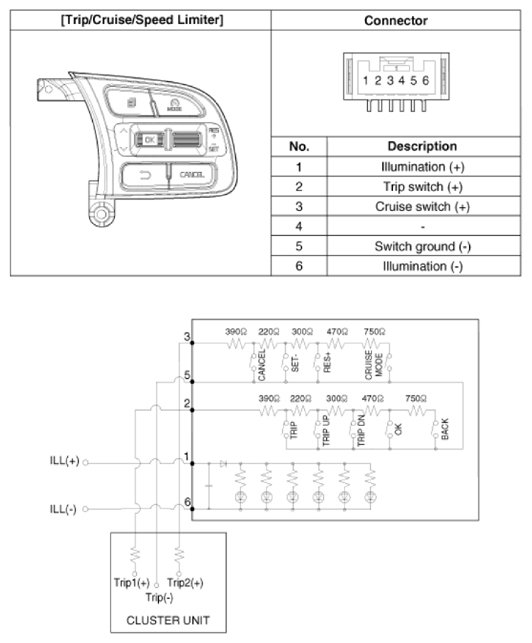

G12915130Courtesy of KIA MOTORS AMERICA, INC.

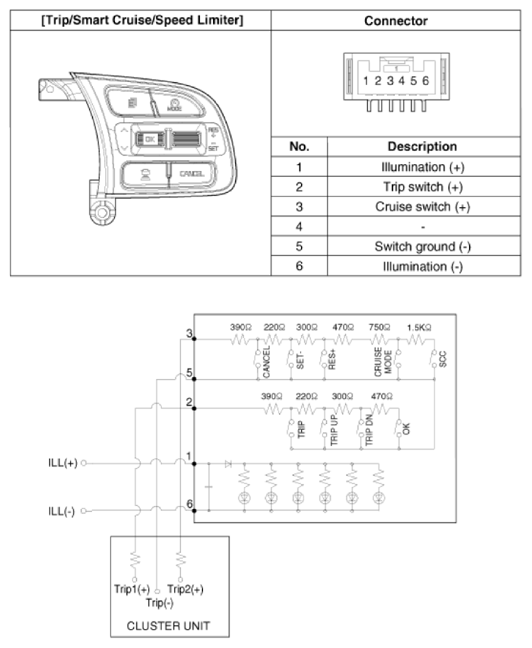

G12915131Courtesy of KIA MOTORS AMERICA, INC.
