Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

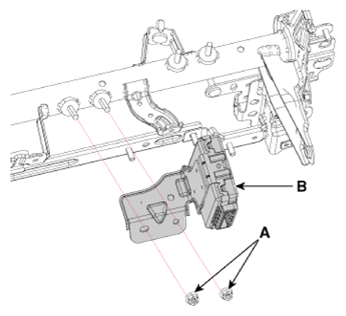

  3. Remove the ASCC ECU (B) after disconnecting the connector and nuts (A).
    G12915146Courtesy of KIA MOTORS AMERICA, INC.
