Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 - 6

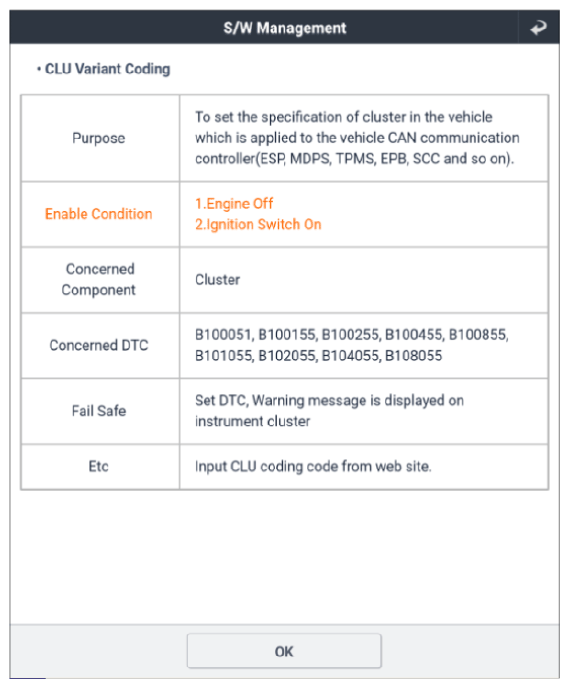

G12993211Courtesy of KIA MOTORS AMERICA, INC.

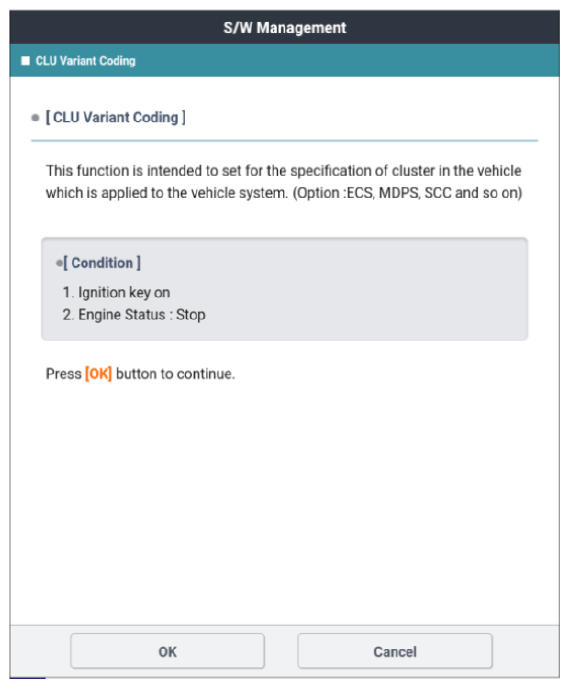

G12993212Courtesy of KIA MOTORS AMERICA, INC.

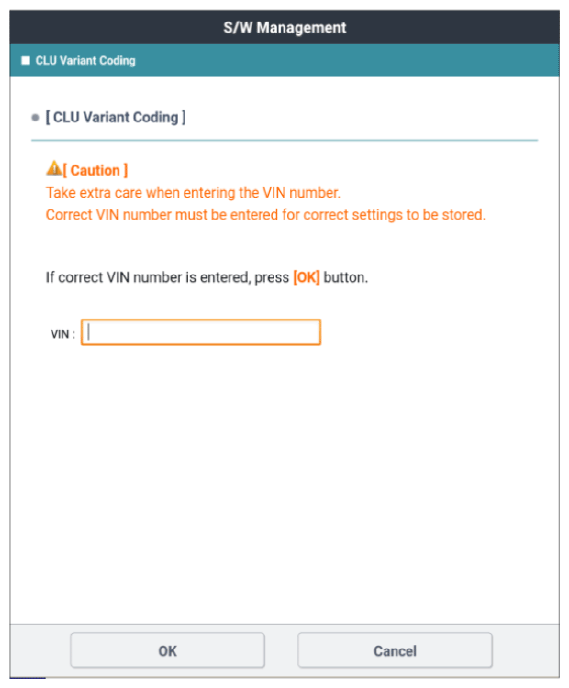

G12993213Courtesy of KIA MOTORS AMERICA, INC.

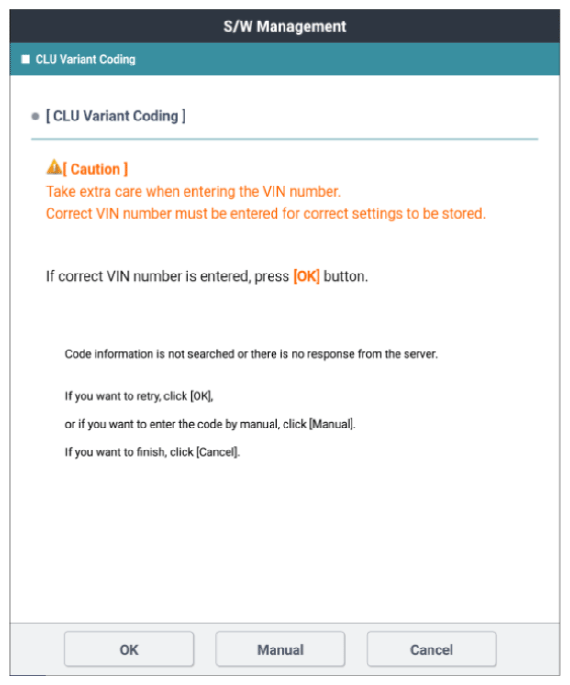

G12993214Courtesy of KIA MOTORS AMERICA, INC.

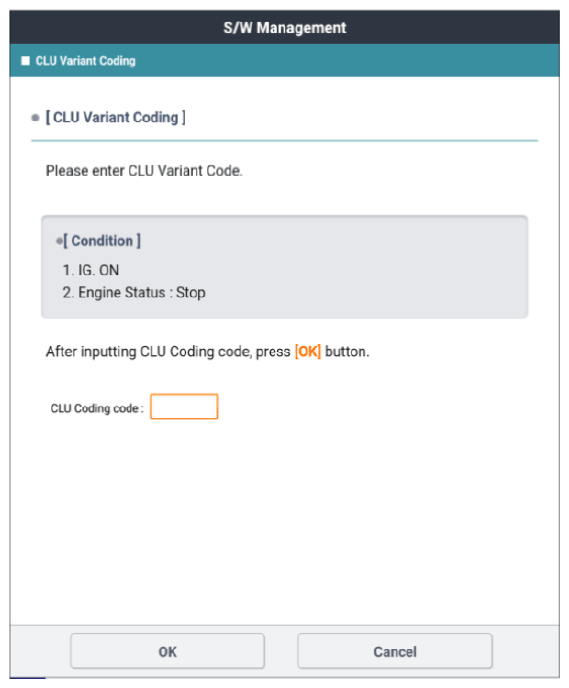

G12993215Courtesy of KIA MOTORS AMERICA, INC.

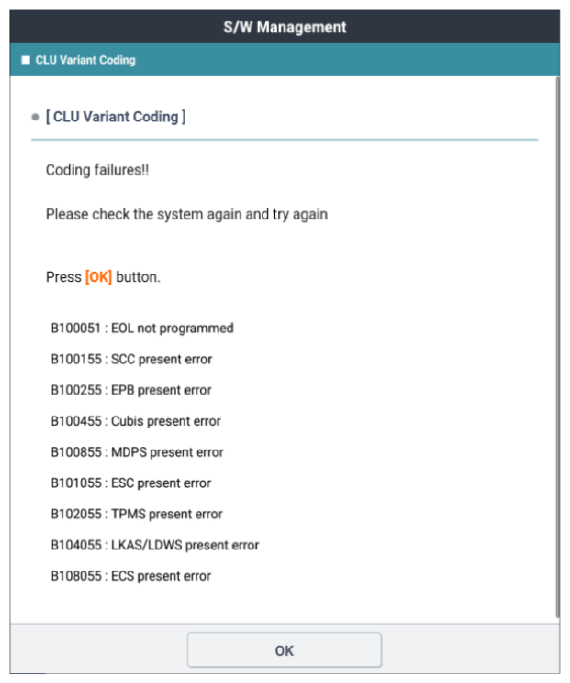

G12993216Courtesy of KIA MOTORS AMERICA, INC.
