Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 - 6

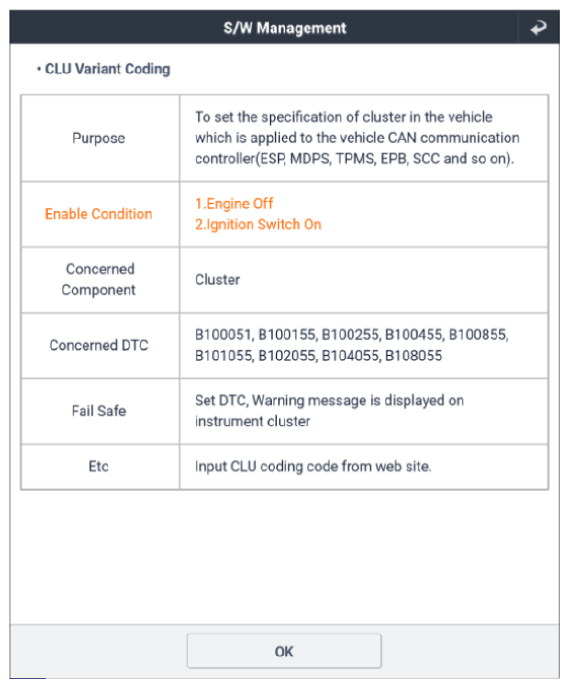

G12993171Courtesy of KIA MOTORS AMERICA, INC.

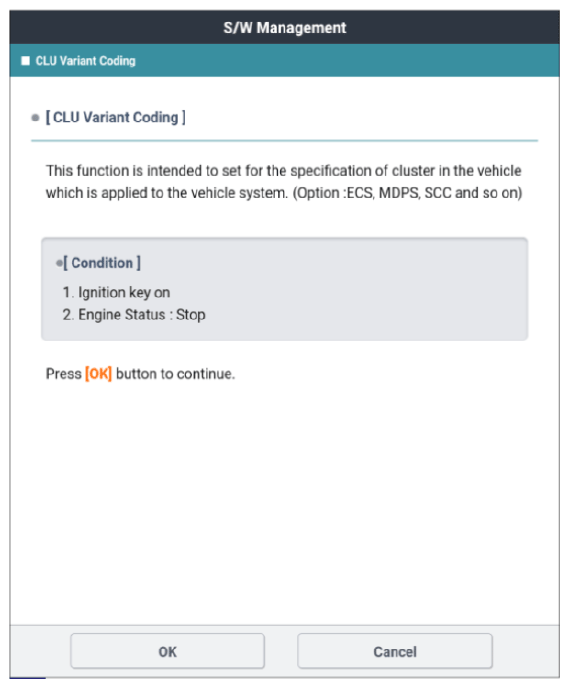

G12993172Courtesy of KIA MOTORS AMERICA, INC.

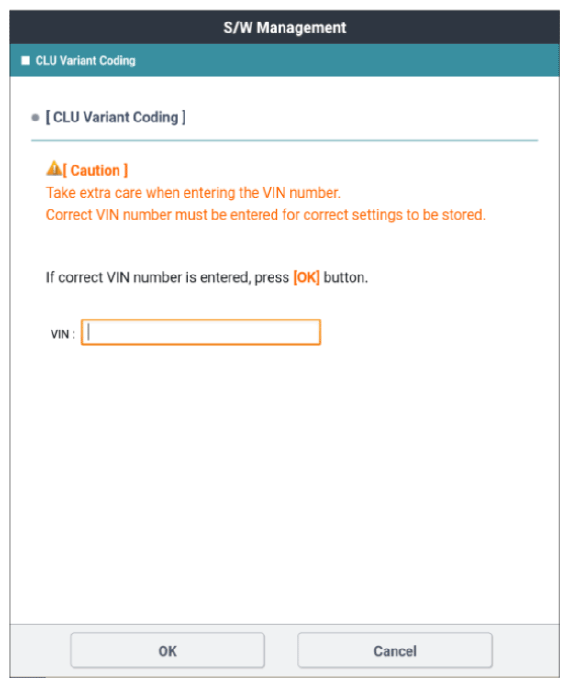

G12993173Courtesy of KIA MOTORS AMERICA, INC.

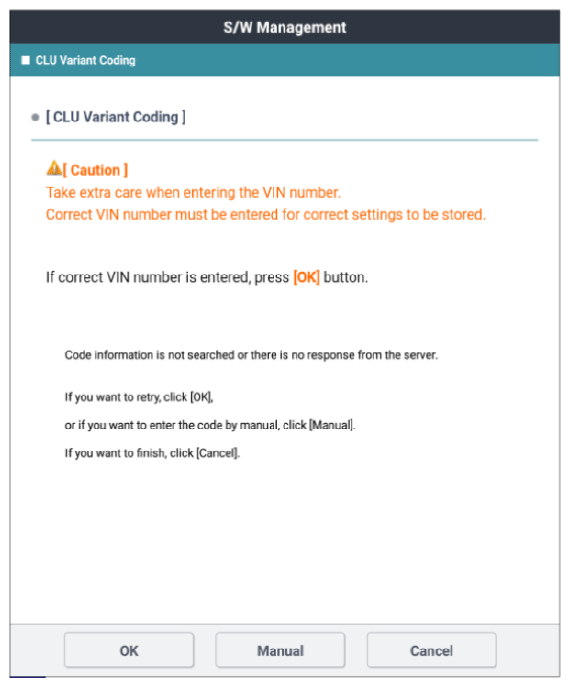

G12993174Courtesy of KIA MOTORS AMERICA, INC.

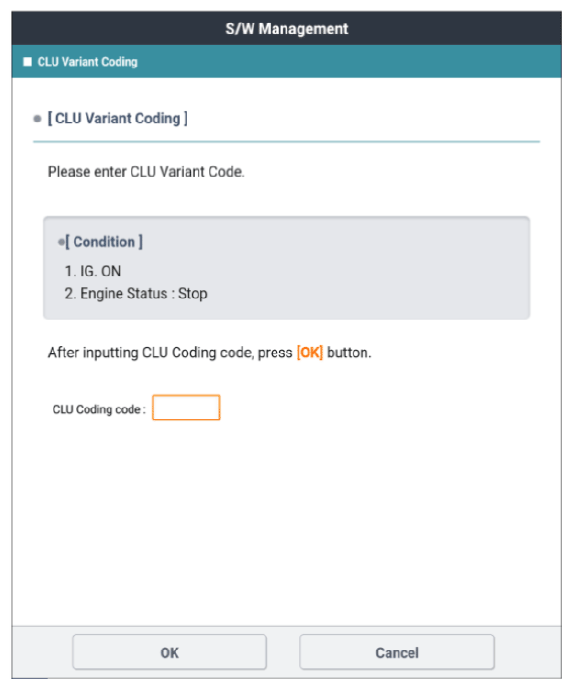

G12993175Courtesy of KIA MOTORS AMERICA, INC.

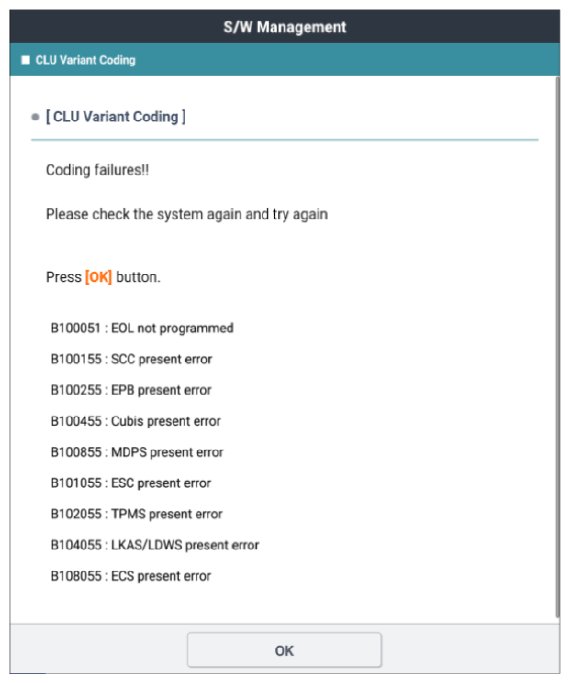

G12993176Courtesy of KIA MOTORS AMERICA, INC.
